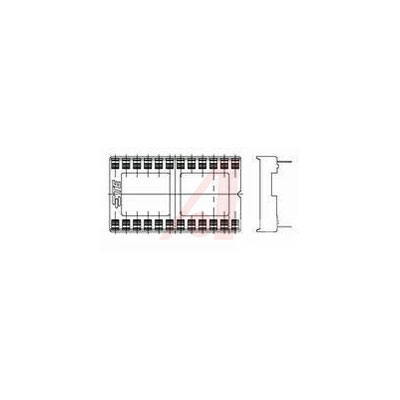

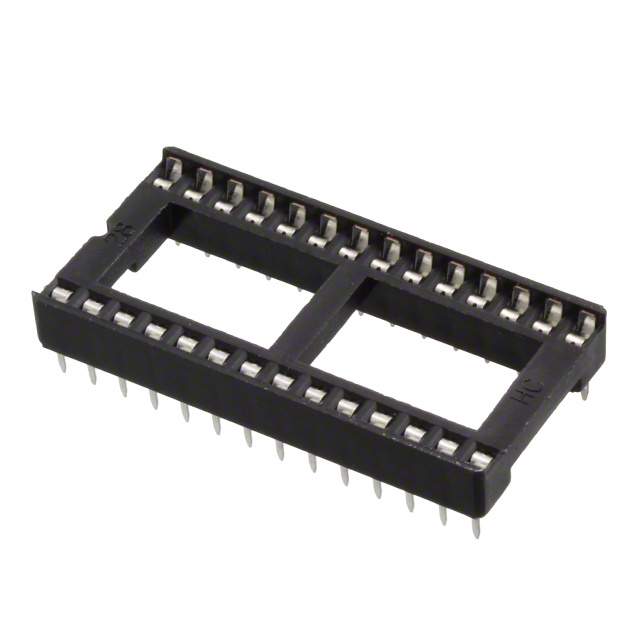

TE CONNECTIVITY 1-2199299-2 芯片和元件插座, DIP插座, 28 触点, 2.54 mm, 15.24 mm, 镀锡触芯
The is a 28-way through hole DIP Socket with 30% glass filled PBT, thermoplastic housing, tin/lead-plated brass/copper sleeve and tin-plated phosphor bronze contacts. Dual leaf mating contact, standard socket style and polarisation mating alignment type.
- .
- Vertical mounting angle
- .
- 20mR Contact resistance
- .
- 1000MR Insulation resistance
- .
- 250VAC/DC Voltage rating
- .
- 1A Current rating
- .
- 1000VAC Minimum dielectric withstanding voltage
- .
- -40 to 105°C Operating temperature range
触点数 28
极性 Female
触点电镀 Tin
额定电流 1 A
绝缘电阻 10000 MΩ
排数 2
易燃性等级 UL 94 V-0
接触电阻 20 mΩ
额定电流Max 1A/触头
接触电阻Max 20 mΩ
安装方式 Through Hole
引脚数 28
封装 DIP-10
高度 5.1 mm
封装 DIP-10
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, 工业, Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536694040
