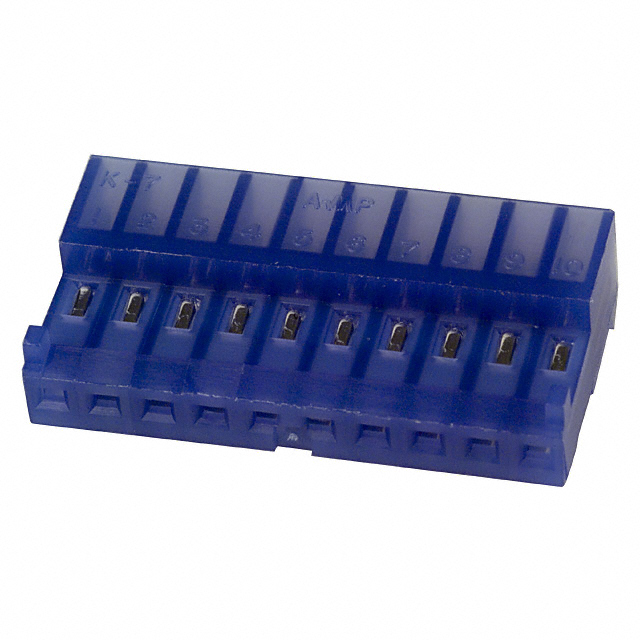

Conn IDC Connector F 10POS 2.54mm IDT RA Cable Mount Bag
10P MTA100 CONN ASSY POL RIB
Product Highlights
MTA-100 Connectors
Number of Positions = 10
Mating Type = Receptacle
Connector Type = Closed End
Wire-to-Board Application
得捷:
CONN RCPT 10P IDC 26AWG TIN-LEAD
安富利:
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Loose Piece
Chip1Stop:
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Loose Piece
Verical:
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Bag/Box
MASTER:
10P MTA100 CONN ASSY POL RIB
Online Components:
10P MTA100 CONN ASSY POL RIB
Electro Sonic:
10P MTA100 CONN ASSY POL RIB
触点数 10
线规 26 AWG
触点电镀 Tin Lead
额定电压AC 250 V
排数 1
易燃性等级 UL 94 V-2
针脚数 10
带凸肩 No
额定电流Max 5A/触头
额定电压Max 250 VAC
接触电阻Max 6 mΩ
引脚间距 2.54 mm
长度 25.4 mm
宽度 6.99 mm
高度 6.99 mm
引脚间距 2.54 mm
外壳颜色 Blue
颜色 Blue
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Nylon
产品生命周期 End of Life
包装方式 Bag
制造应用 Signal
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536694040
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1-643815-0 TE Connectivity 泰科 | 当前型号 | 当前型号 |
4-643815-0 泰科 | 功能相似 | 1-643815-0和4-643815-0的区别 |
