1032500

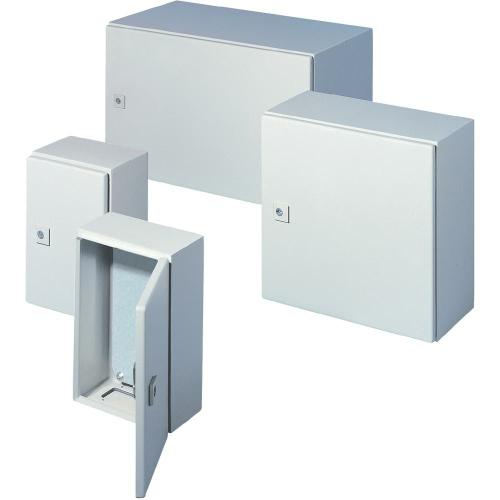

1032500图片1
1032500图片2
1032500概述

Switchboard 200 x 300 x 120 Steel plate Grey-white RAL 7035 Rittal 1032.500 1 pcs

Product Features

Configuration:

One-piece enclosure body

Right hand hinge

1/4 turn latch with double-bit insert

Zinc-plated mounting panel

Rear Wall Mounting holes

Foamed-in-place polyurethane gasket

Material:

Sheet steel

Finish:

Dipcoat-primed, powder-coated in textured RAL 7035 light gray

Ratings

IP 66

UL Type 1, 12, 3R, 4

Certifications and Approvals

BV 04880_E0_BV

CE 1335701

CSA LR 59132

GL 69 280 - 90 HH

HE 1 246 310

LR 04 / 20022

MRS 10.04046.250

TUEV B 96 07 12010 108

UL E 76083

VDE 6312 ÜG

1032500中文资料参数规格
物理参数

颜色 Gray

材质 Steel

其他

Brand/Series AE Series

Color Gray

Configuration Gland Plate

Cover Locking Quarter-Turn Latch

Cover Mounting Hinged

Dimensions 12 x 8 x 5 In. 305 x 203 x 127 mm

Enclosure Mounting Wall Mount

IP Rating IP66

Material Steel

NEMA Rating None

Size Small

Size, Approximate Depth 5" 127mm

Size, Approximate Height 12" 305mm

Size, Approximate Width 8" 203mm

Type Junction Box

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买1032500
型号: 1032500
制造商: Rittal 威图
描述:Switchboard 200 x 300 x 120 Steel plate Grey-white RAL 7035 Rittal 1032.500 1 pcs
