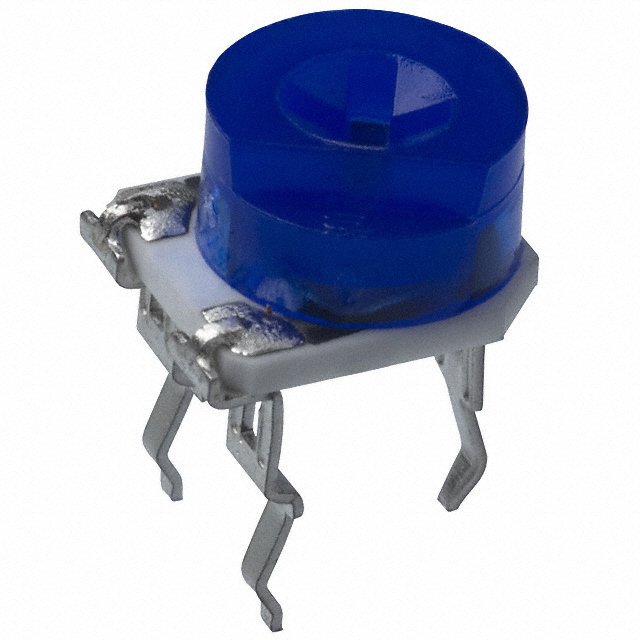

3306F-1-104

BOURNS  3306F-1-104  金属陶瓷电阻, 100KΩ, 25+/-%容差, 2732封装

**Specifications**

* Resistance Tolerance: 25%

* Power Rating: 0.2 Watt at 70°C

* Temperature Rating: –25°C to 100°C

* Load Life: 1000 Hrs

**Features**

* 6 mm Round/Single-Turn/Cermet Industrial/Open-Frame

* Cross Slot Adjustment Options

* Horizontal and Vertical Mounting Styles

* Dust Resistant/Splash Resistant Covers

* PC Board Stand-Offs and Retention Feature

* Front and Top Adjust Styles

得捷:
TRIMMER 100K OHM 0.2W PC PIN TOP

立创商城:
3306F-1-104

贸泽:
Trimmer Resistors - Through Hole 100K 25% 6mm Single Turn

e络盟:
金属陶瓷电阻, 100KΩ, 25+/-%容差, 2732封装

艾睿:
Apply this 3306F-1-104 potentiometer from Bourns to infrequently adjust the resistance value for your circuit. This product has a resistance value of 100K Ohm. This part has a power rating of 0.2 1/5 W. Its temperature coefficient is ±250 ppm/°C. This part has an operating temperature of -25 to 100 °C. This product is 6.81 mm long, 7.62 mm tall and 8.1 mm deep. The 3306F-1-104 part has a pin termination style. This device is made with cermet technology.

Allied Electronics:
TRIMMER - 6MM ROUND; SINGLE-TURN; CERMET; 100K OHMS

安富利:
Res Cermet Trimmer 100K Ohm 25% 1/5W 1Elec/1MechTurn 6.81 X 8.1 X 7.62mm Pin Thru-Hole Bag

Chip1Stop:
Res Cermet Trimmer 100K Ohm 25% 0.2W1/5W 1Elec/1MechTurn 6.81 X 8.1 X 7.62mm Pin Thru-Hole Bag

TME:
Potentiometer: mounting; single turn, horizontal; 100kΩ; 200mW

Verical:
Res Cermet Trimmer 100K Ohm 25% 0.2W1/5W 1Elec/1MechTurns 3.4mm 6.81 X 8.1 X 7.62mm Pin Thru-Hole Bag

Newark:
Trimmer Potentiometer, Through Hole, 100 kohm, 200 mW, ± 25%, 3306F Series, 1 Turns, Through Hole

MASTER:
Res Cermet Trimmer 100K Ohm 25% 0.2W1/5W 1Elec/1MechTurns 3.4mm 6.81 X 8.1 X 7.62mm Pin Thru-Hole Bag

Electro Sonic:
Res Cermet Trimmer 100K Ohm 25% 0.2W1/5W 1Elec/1MechTurns 3.4mm 6.81 X 8.1 X 7.62mm Pin Thru-Hole Bag
