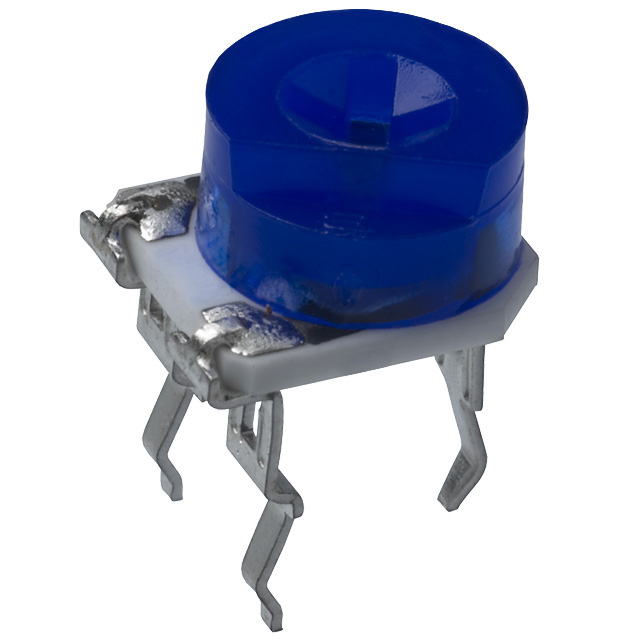

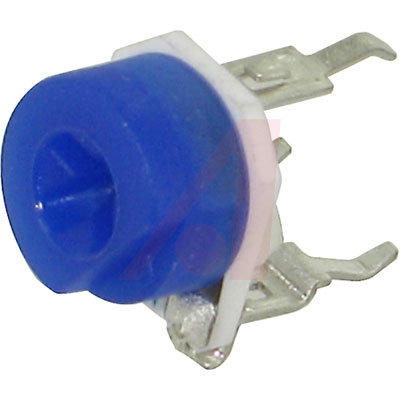

3306F-1-503

BOURNS  3306F-1-503.  金属陶瓷电阻, 50KΩ, 25+/-%容差, 2732封装

0.2W，1/5W PC 引脚 通孔 微调电位计 金属陶瓷 匝 顶部调节

得捷:
TRIMMER 50K OHM 0.2W PC PIN TOP

立创商城:
3306F-1-503

e络盟:
微调电位器, 50 kohm, 1 转, 通孔安装, Trimpot 3306系列, 200 mW, ± 25%

艾睿:

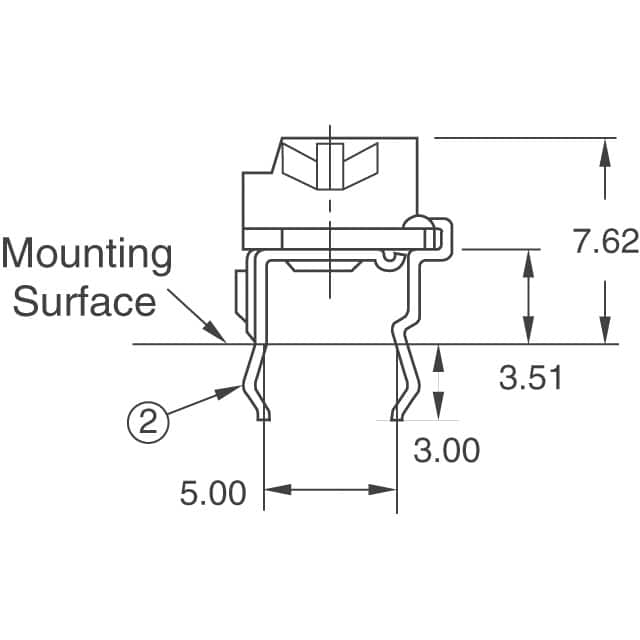

Optimize functionality in your circuit by placing this 3306F-1-503 potentiometer from Bourns at critical points. This part has a power rating of 0.2 1/5 W. This product has a resistance value of 50K Ohm. Its temperature coefficient is ±250 ppm/°C. This product is 6.81 mm long, 7.62 mm tall and 8.1 mm deep. The 3306F-1-503 part has a pin termination style. This part has an operating temperature of -25 to 100 °C. This device is made with cermet technology.

Allied Electronics:
TRIMMER - 6MM ROUND; SINGLE-TURN; CERMET; 50K OHMS

安富利:
Res Cermet Trimmer 50K Ohm 25% 1/5W 1Elec/1MechTurn 6.81 X 8.1 X 7.62mm Pin Thru-Hole Bag

Chip1Stop:
Res Cermet Trimmer 50K Ohm 25% 0.2W1/5W 1Elec/1MechTurn 6.81 X 8.1 X 7.62mm Pin Thru-Hole Bag

Verical:
Res Cermet Trimmer 50K Ohm 25% 0.2W1/5W 1Elec/1MechTurns 3.4mm 6.81 X 8.1 X 7.62mm Pin Thru-Hole Bag

Newark:
# BOURNS  3306F-1-503  TRIMMER, 50K, 6MM

MASTER:
Res Cermet Trimmer 50K Ohm 25% 0.2W1/5W 1Elec/1MechTurns 3.4mm 6.81 X 8.1 X 7.62mm Pin Thru-Hole Bag

Electro Sonic:
Res Cermet Trimmer 50K Ohm 25% 0.2W1/5W 1Elec/1MechTurns 3.4mm 6.81 X 8.1 X 7.62mm Pin Thru-Hole Bag
