5-2834006-2

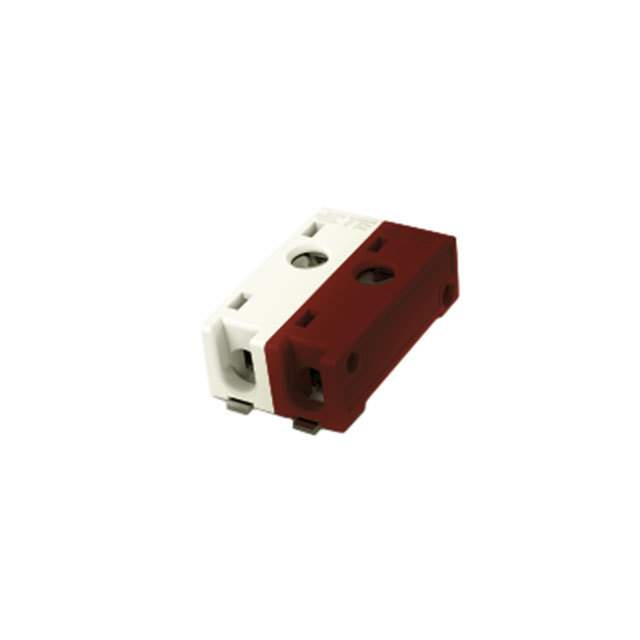

5-2834006-2图片1
5-2834006-2图片2
5-2834006-2图片3
5-2834006-2图片4
5-2834006-2图片5
5-2834006-2图片6
5-2834006-2图片7
5-2834006-2图片8
5-2834006-2图片9
5-2834006-2概述

照明连接器 2P MRPK _WE/RD

BUCHANAN WireMate connector poke-in series is a 4.0mm pitch modular connector for Wire-to-Board connectivity. The poke-in feature allows for easy and fast installation and its modular design enables a flexible solution.


得捷:
2P MRPK _WE/RD


贸泽:
照明连接器 2P MRPK _WE/RD


艾睿:
Conn Poke-In Wire RCP 2 POS 4mm Solder RA Side Entry SMD T/R


安富利:
2P MRPK _WE/RD


Verical:
Conn Poke-In Wire RCP 2 POS 4mm Solder RA Side Entry SMD T/R


5-2834006-2中文资料参数规格
技术参数

触点数 2

触点电镀 Tin Lead

排数 1

易燃性等级 UL 94 V-0

针脚数 2

额定电流Max 6A/触头

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压Max 400 VAC

额定电压 400 V

封装参数

安装方式 Surface Mount

外形尺寸

高度 4.48 mm

物理参数

外壳颜色 Natural

触点材质 Copper Alloy

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

数据手册

5-2834006-2引脚图与封装图
5-2834006-2引脚图
5-2834006-2封装图
5-2834006-2封装焊盘图
在线购买5-2834006-2
型号: 5-2834006-2
制造商: TE Connectivity 泰科
描述:照明连接器 2P MRPK _WE/RD
