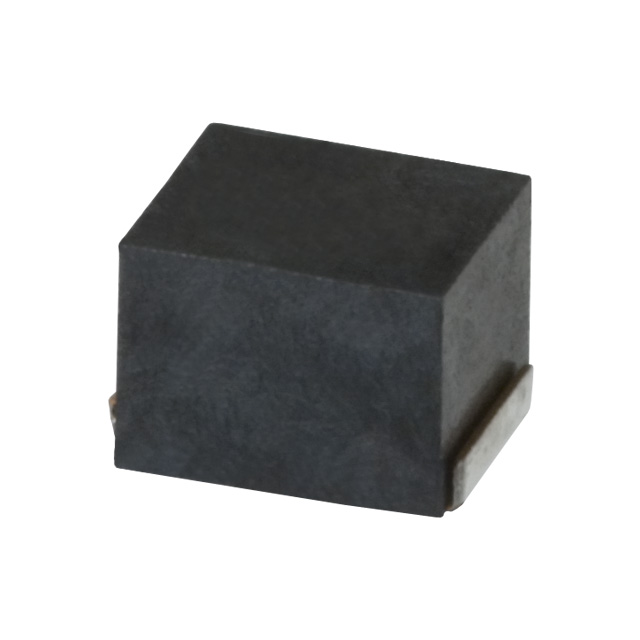

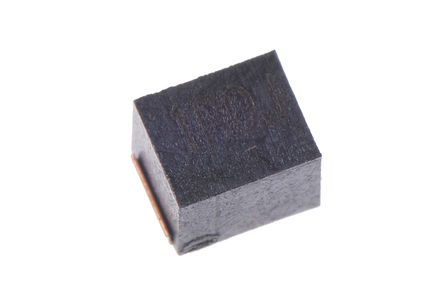

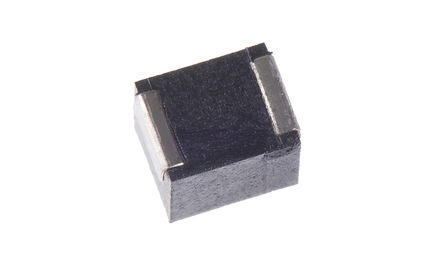

NLV32T-1R0J-PF

TDK  NLV32T-1R0J-PF  信号线指示灯, 1uH, 400mA, 5%, 120MHZ, 整卷

固定器

得捷:
FIXED IND 1UH 400MA 700 MOHM SMD

欧时:
TDK NLV-PF 系列 1 μH 绕线贴片电感器 NLV32T-1R0J-PF, ±5%容差, 400mA Idc Q:30, 700mΩ最大直流电阻

立创商城:
1uH ±5% 700mΩ

e络盟:
# TDK  NLV32T-1R0J-PF  信号线电感, 1UH, 400MA, 5%, 120MHZ

艾睿:

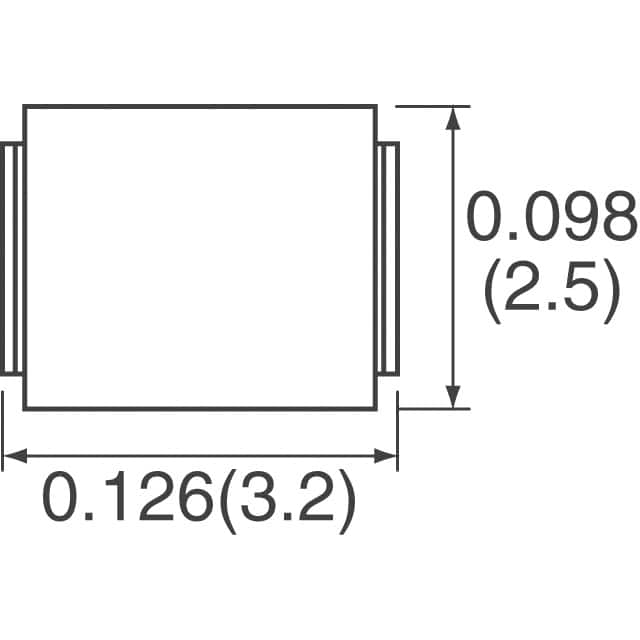

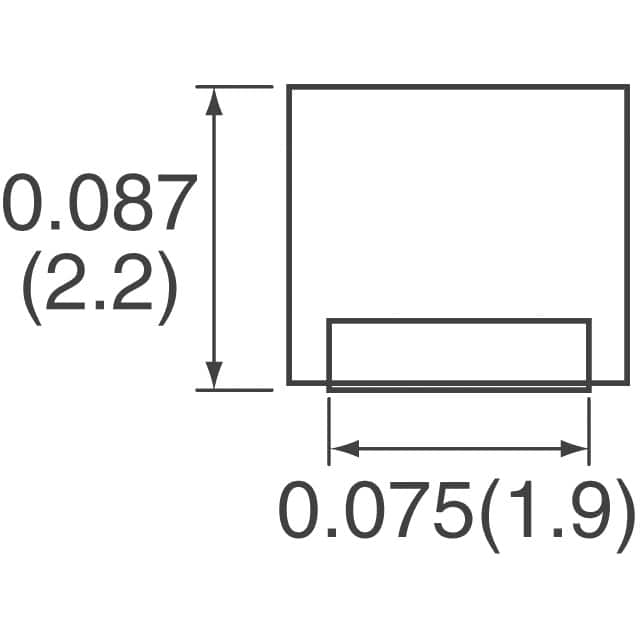

An ideal space-saving electronic component is this rf chip NLV32T-1R0J-PF surface mount inductor from TDK. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has an inductance of 1u H. This SMD inductor has a maximum DC current of 400m A with a maximum resistance of 700m Ohm. It has a tolerance of 5%. This product is 3.4 mm long, 2.4 mm tall and 2.7 mm deep. Its test frequency is 7.96M Hz, while its minimum self-resonant frequency is 120M Hz. This device is made with wirewound technology.

安富利:
Ind RF Chip Unshielded Wirewound 1uH 5% 7.96MHz 30Q-Factor 400mA 1210 T/R

富昌:
NLV Series 1210 1 uH ±5 % 400 mA 0.7 Ohm SMT Molded Wirewound Inductor

Chip1Stop:
Ind RF Chip Unshielded Wirewound 1uH 5% 7.96MHz 30Q-Factor Ferrite 400mA 3.2 x 2.5 mm T/R

TME:

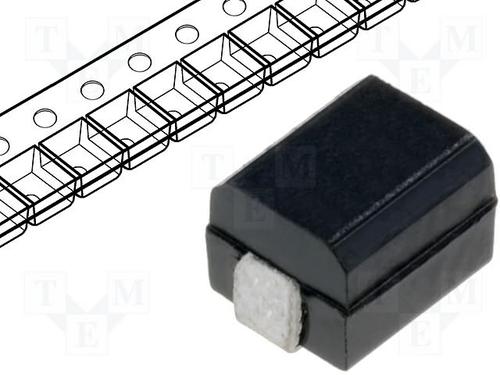

Inductor: ferrite; SMD; 1210; 1uH; 400mA; 700mΩ; Q:30; ftest:7.96MHz

Verical:
Inductor General Purpose Chip Molded/Unshielded Wirewound 1uH 5% 7.96MHz 30Q-Factor Ferrite 0.4A 0.7Ohm DCR 1210 T/R

Newark:
# TDK  NLV32T-1R0J-PF  Surface Mount High Frequency Inductor, NLV Series, 1 µH, 400 mA, 1210 [3225 Metric], Wirewound

儒卓力:
**NLV32T 1uH 400mA 5% WWT **

MASTER:
Inductor RF Chip Unshielded Wirewound 1uH 5% 7.96MHz 30Q-Factor Ferrite 400mA 700mOhm DCR 1210 T/R

Electro Sonic:
Inductor RF Chip Unshielded Wirewound 1uH 5% 7.96MHz 30Q-Factor Ferrite 400mA 700mOhm DCR 1210 T/R

Win Source:
1μH Unshielded Wirewound Inductor 400mA 700 mOhm Max 1210 3225 Metric
