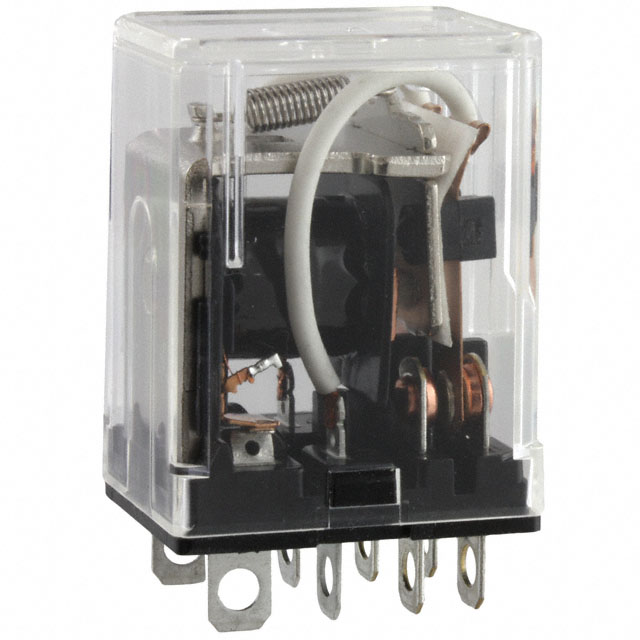

HL 系列 10 A 双刀单掷 24 VDC 插件 节省空间 通用 功率继电器
FEATURES
1\. Compact high-capacity control relay
In the same external dimensions as an HC relay, this compact power relay enables high-capacity control: 15 A for 1 Form C, 10 A for 2 Form C.
2\. Designed for high reliability
High operational reliability is achieved by solder-less construction, in which all connections between lead wires and the contact springs and terminal plate are welded.
3\. Various types provided in rich
lineup. LED indicator type also available.
额定电压AC 125 V
触点类型 DPDT
功耗 1.3 VA
触点额定电流 10 A
线圈电压 24 VAC
线圈电流 50 mA
线圈电压AC 24 V
额定电流Max 10 A
线圈功率 1.2 VA
工作温度Max 70 ℃
工作温度Min -50 ℃
安装方式 Through Hole
引脚数 8
高度 41.75 mm
触点材质 Silver Tin Oxide
工作温度 -50℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490075
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
HL2-H-AC24V-F Panasonic 松下 | 当前型号 | 当前型号 |
HL2-H-AC24V 松下 | 完全替代 | HL2-H-AC24V-F和HL2-H-AC24V的区别 |
K10P-11A15-24 泰科 | 功能相似 | HL2-H-AC24V-F和K10P-11A15-24的区别 |
LY2-AC24 欧姆龙 | 功能相似 | HL2-H-AC24V-F和LY2-AC24的区别 |
