5646529-1概述

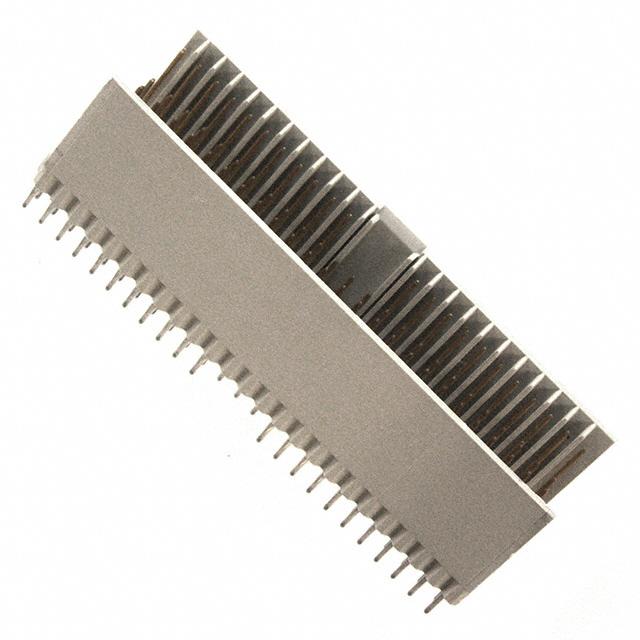

TE CONNECTIVITY  5646529-1  连接器, Z-PACK Series, 硬公制 HM, 169 触点, 针座, 2 mm, 压配合 新

Think of "s hard metric backplane connector the next time you need to connect several printed circuit boards together to form a computer system. This M connector"s 169 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a male type gender. This is a 7-row connector. Its pitch is 2 mm. It has a straight body orientation. 5646529-1 is housed in polyester. It uses the press fit termination method. This product is 15.4 mm long, 13.45 mm tall and 49.9 mm deep.

5646529-1中文资料参数规格
技术参数

触点数 169

极性 Male

触点电镀 Gold

排数 7

针脚数 169

封装参数

安装方式 Through Hole

封装 -

外形尺寸

长度 15.4 mm

宽度 49.9 mm

高度 13.45 mm

封装 -

物理参数

外壳颜色 Gray

触点材质 Phosphor Bronze

其他

产品生命周期 Unknown

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册

在线购买5646529-1
型号: 5646529-1
制造商: TE Connectivity 泰科
描述:TE CONNECTIVITY  5646529-1  连接器, Z-PACK Series, 硬公制 HM, 169 触点, 针座, 2 mm, 压配合 新
