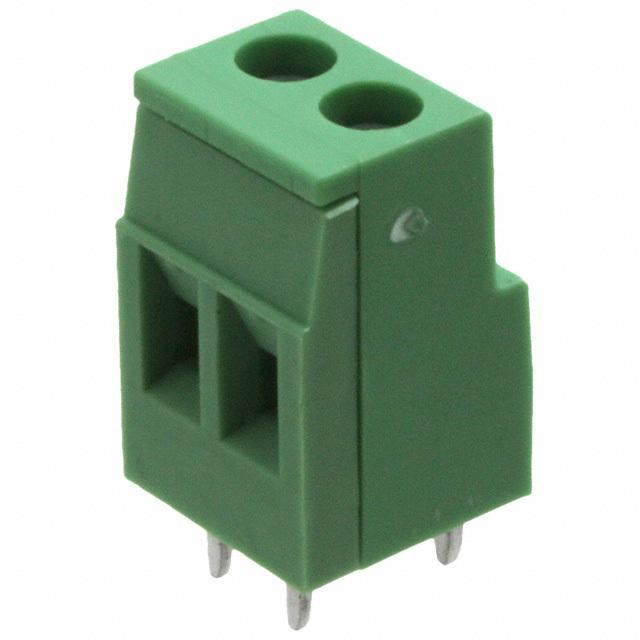

固定接线端子 MKDSD 2.5/ 2-5.08
2 接线板 - 线至板 水平，带板 0.200"（5.08mm） 通孔
得捷:
TERM BLK 2P SIDE ENT 5.08MM PCB
立创商城:
5.08mm 排数:1 每排P数:2
贸泽:
固定接线端子 MKDSD 2.5/ 2-5.08
艾睿:
Need to ensure strong connections between circuits? This pc terminal block 1730502 PCB terminal block from Phoenix Contact will do just that! This F connector has 2 F contacts. It has a straight body orientation. Its pitch is 5.08 mm. It has a female type gender. It has a maximum voltage rating of 250 V. This is a 1-row connector. This device has a maximum current rating of 24 A. 1730502 is housed in polyamide. This product is 11.34 mm long, 18 mm tall and 11.62 mm deep. It uses the solder termination method. Its wire is 14-26 AWG.
Verical:
Conn PC Terminal Block F 2 POS 5.08mm Solder ST Thru-Hole 24A
MASTER:
PCB terminal block - nominal current: 24 A - rated voltage III/2: 400 V - nominal cross section: 2.5 mm² - pitch: 5.08 mm - number of positions: 2 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB conne
Online Components:
Conn PC Terminal Block F 2 POS 5.08mm Solder ST Thru-Hole 24A
Electro Sonic:
PCB terminal block - nominal current: 24 A - rated voltage III/2: 400 V - nominal cross section: 2.5 mm² ...
