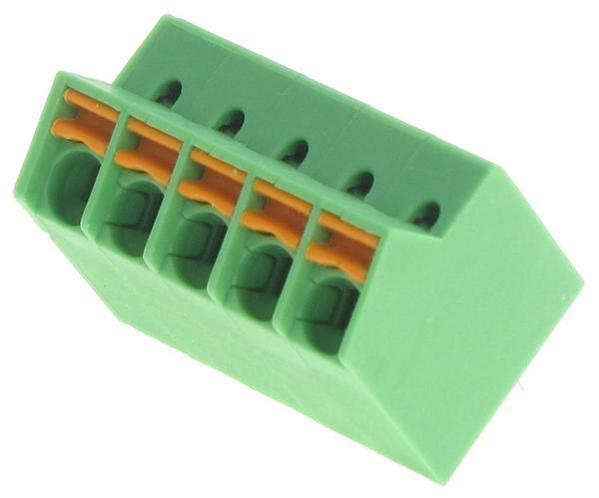

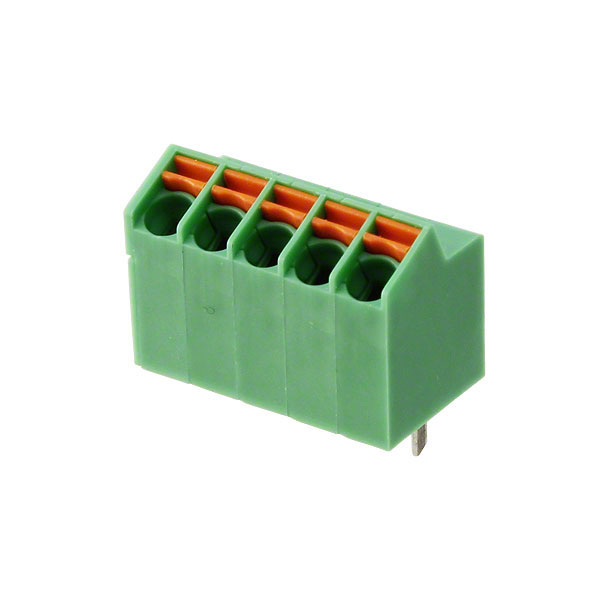

Conn; Term Blk; PCB; Spring Cage; 5; 3.5mm; 45Deg; 24-16AWG; Green; 9A; 160V
5 接线板 - 线至板 25°（155°）角度，带板 0.138"（3.50mm） 通孔
得捷:
TERM BLOCK 5POS 25DEG 3.5MM PCB
艾睿:

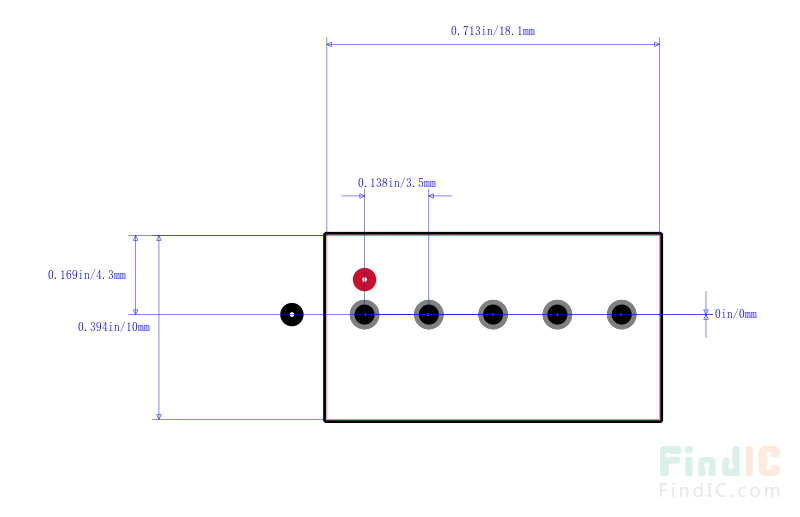

This pc terminal block 1752133 PCB terminal block developed by Phoenix Contact will mend different gage wires together. It has a maximum voltage rating of 200 V. Its pitch is 3.5 mm. This is a 1-row connector. This device has a maximum current rating of 9 A. 1752133 is housed in polyamide. This product is 18.1 mm long, 12.4 mm tall and 10 mm deep. It uses the solder termination method. Its wire is 16-24 AWG.
Allied Electronics:
Conn; Term Blk; PCB; Spring Cage; 5; 3.5 mm; 45 Deg; 24-16 AWG; Green; 9A; 160V
Verical:
PC TERMINAL BLOCK NOMINAL CURRENT 9 A NOM. VOLTAGE 160 V PITCH 3.5 MM
MASTER:
PCB terminal block - nominal current: 9 A - rated voltage III/2: 200 V - nominal cross section: 1 mm² - pitch: 3.5 mm - number of positions: 5 - connection method: Push-in spring connection - mounting: Wave soldering - conductor/PCB connection direction
Online Components:
Conn PC Terminal Block 5 POS 3.5mm Solder Thru-Hole 9A
Electro Sonic:
PCB terminal block - nominal current: 9 A - rated voltage III/2: 200 V - nominal cross section: 1 mm² ...
