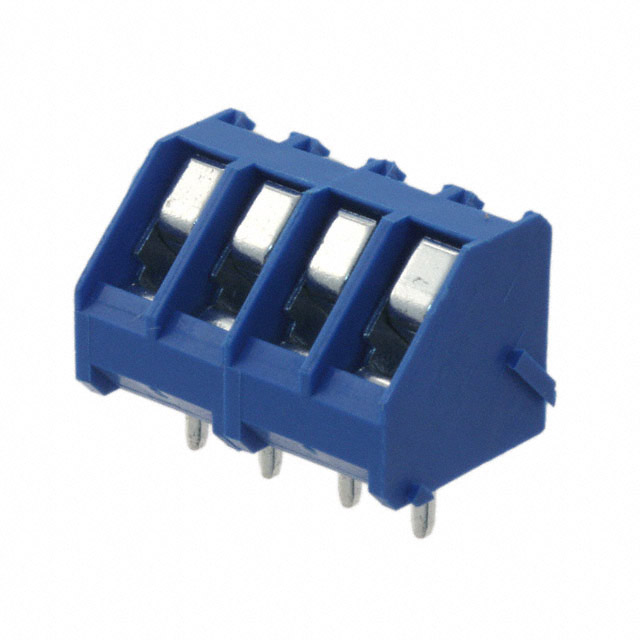

1776252-4

Conn Eurostyle Block 4POS 5mm Solder ST Thru-Hole

4 接线板 - 线至板 45°（135°）角度，带板 0.197"（5.00mm） 通孔

得捷:
TERM BLOCK 4POS 45DEG 5MM PCB

贸泽:
Fixed Terminal Blocks 45 DEGREE WIRE INLET 5.0mm H

艾睿:
This eurostyle block 1776252-4 PCB terminal block from TE Connectivity will join multiple circuits by connecting to the bare wire. It has a maximum voltage rating of 250 VAC. Its pitch is 5 mm. It has a straight body orientation. This is a 1-row connector. 1776252-4 is housed in ny-fr15. Its wire is 14-22 AWG. It uses the solder termination method. This quick disconnect terminal has an operating temperature of -55 to 105 °C. This product is 20.5 mm long, 12 mm tall and 12.5 mm deep.

Verical:
Conn Eurostyle Block HDR 4 POS 5mm Solder ST Thru-Hole 10A/Contact

Newark:
# AMP - TE CONNECTIVITY  1776252-4  45 DEGREE WIRE INLET, 5.0MM, H New

MASTER:
TERMINAL BLOCK PCB MOUNT, STRAIGHT SIDE WIRE ENTRY, W/INTERLOCK, 5.00mm PITCH

Powell:
Terminal Block Connectors

Online Components:
45 degree wire inlet, 5.0mm, H

Electro Sonic:
45 degree wire inlet, 5.0mm, H
