1803426

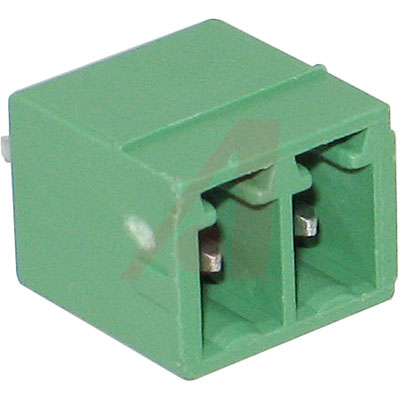

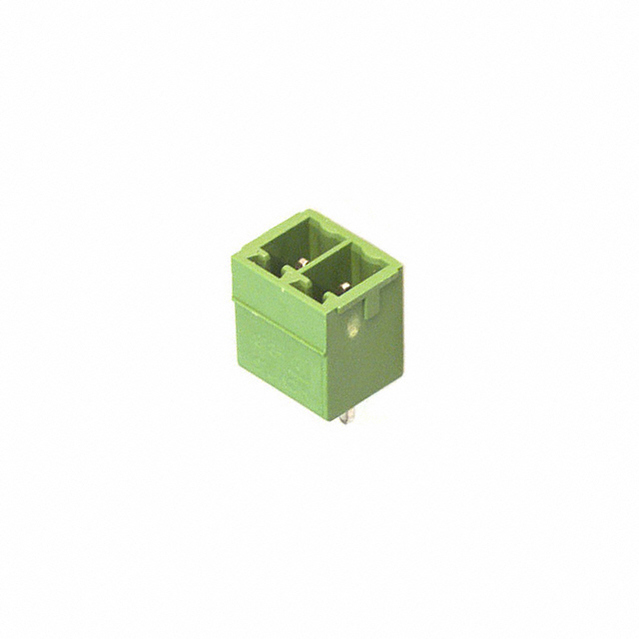

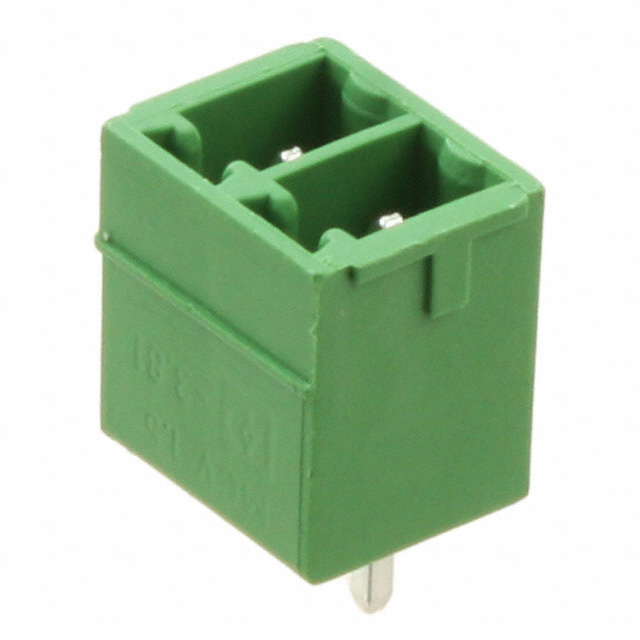

PHOENIX CONTACT  1803426  端子块, 针座, 3.81 mm, 2 路, 8 A, 160 V, 通孔竖直

Contact MINI COMBICON MC 和 MCV 系列 3.81mm 单级印刷电路板端子块管座

MINI COMBICON MC 和 MCV 系列单级薄型直角印刷电路板通孔安装有罩端子块管座，带紧凑型 3.81mm 节距和插入式引脚。这些 MINI COMBICON 端子块提供螺纹法兰和锁定及释放机制。

有关标记卡，请参见库存号 648-5508

有关配接锁定和释放插头，请参见库存号 220-4658（典型）

欧时:
Phoenix Contact PCB 接线端子块 COMBICON MCV 系列 2路 3.81mm节距 1排 直向 1803426, 焊接端接, 8A

得捷:
TERM BLOCK HDR 2POS VERT 3.81MM

立创商城:
板端/插座-闭口 3.81mm 排数:1 每排P数:2 直针

贸泽:
Pluggable Terminal Blocks 2 Pos 3.81mm pitch Through Hole Header

e络盟:
端子块, 针座, 3.81 mm, 2 路, 8 A, 160 V, 通孔竖直

艾睿:
Easily mount this shrouded 1803426 header connector from Phoenix Contact onto your PCB project to support a variety of physical configuration options. This HDR connector has 2 contacts that are plated with tin. This is a 1-row connector. Its pitch is 3.81 mm. It has a header type gender. It has a maximum voltage rating of 160 V@IEC|300V@UL. It has a straight body orientation. This device has a maximum current rating of 8 A. 1803426 is housed in green polybutylene terephthalate. This product is 9.01 mm long, 9.2 mm tall and 7.25 mm deep. It uses the solder termination method.

Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; Sldr; 2Pole; 3.81mmPitch; COMBICON

Chip1Stop:
Conn Shrouded Header HDR 2 POS 3.81mm Solder ST Thru-Hole

Verical:
Conn Shrouded Header 4 Sides HDR 2 POS 3.81mm Solder ST Top Entry Thru-Hole Cardboard

Newark:
# PHOENIX CONTACT  1803426  Terminal Block, Header, 3.81 mm, 2 Positions, 8 A, 160 V, Through Hole Vertical

MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 2 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.4 mm

Online Components:
Conn Shrouded Header HDR 2 POS 3.81mm Solder ST Thru-Hole

Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
