可插拔接线端子 18 Pos 3.81mm pitch Plug 28-16 AWG Screw
18 Position Terminal Block Plug, Female Sockets 0.150" 3.81mm 180° Free Hanging In-Line
得捷:
TERM BLOCK PLUG 18POS STR 3.81MM
贸泽:
可插拔接线端子 18 Pos 3.81mm pitch Plug 28-16 AWG Screw
艾睿:

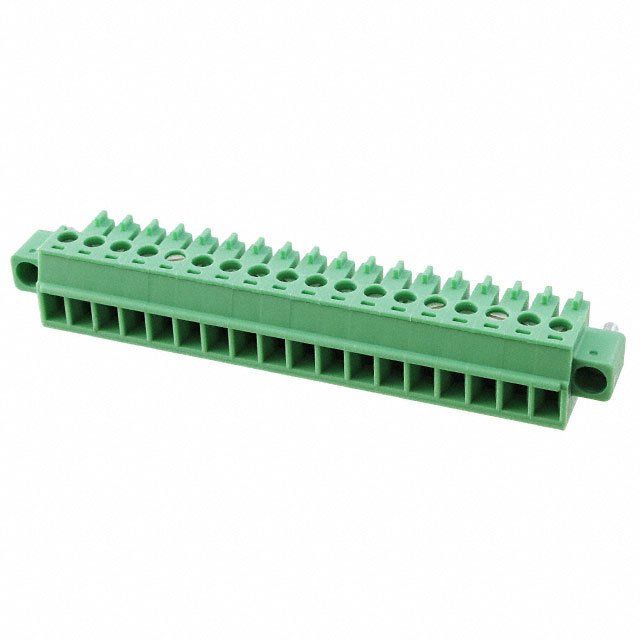

Connect test equipment together with other components by using this 1848478 PCB terminal block from Phoenix Contact. This F connector has 18 contacts that are plated with tin. It has a straight body orientation. It has a maximum voltage rating of 160 V. It has a female type gender. This is a 1-row connector. Its pitch is 3.81 mm. This device has a maximum current rating of 8 A. 1848478 is housed in polyamide. Its wire is 16-28 AWG. It uses the screw termination method. This product is 78.97 mm long, 11.1 mm tall and 16.1 mm deep.
Allied Electronics:

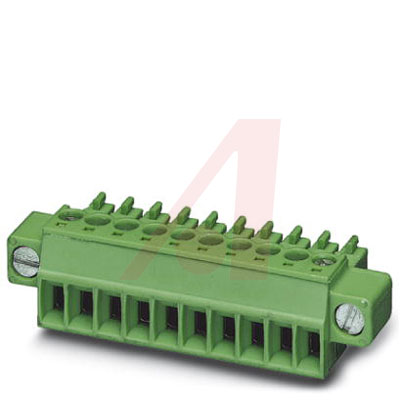

MINI COMBICON MC SER 3.81mm Pitch Straight Pluggable Trm Blk; Plug w/ Screw Term
Verical:
Conn Terminal Block F 18 POS 3.81mm Screw ST Panel Mount 8A
Electro Sonic:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
