1890963

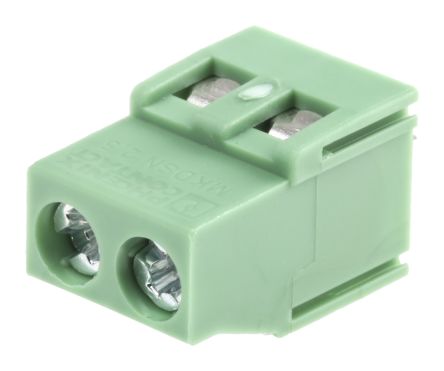

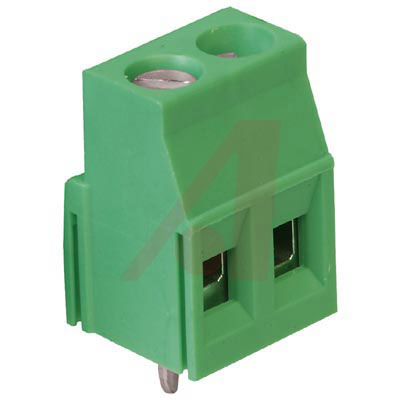

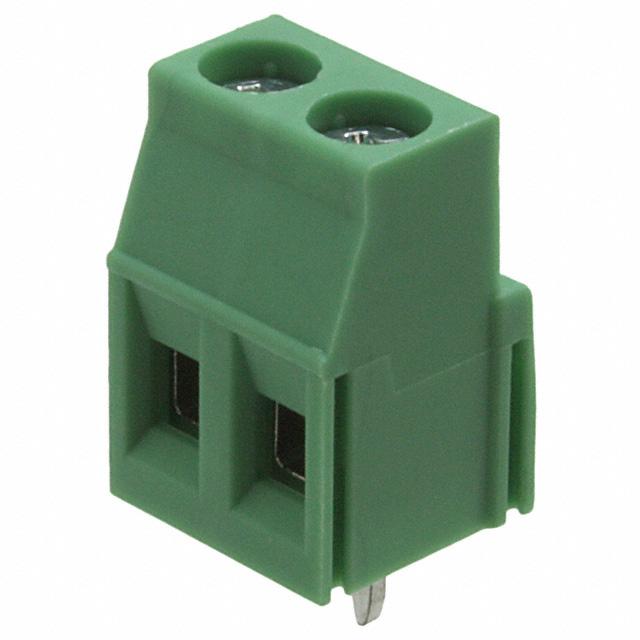

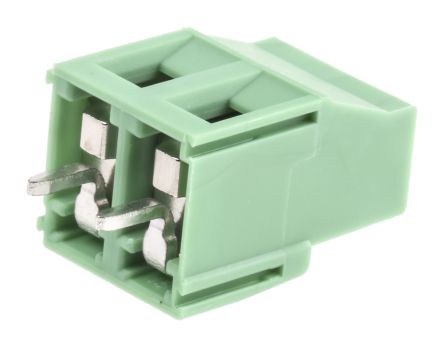

Phoenix Contact COMBICON MKDSN 5.0mm 薄型印刷电路板端子块Professional range of Phoenix Contact MKDSN Series 5.0 mm pitch terminal blocks offering various different positions.Various positions available 5.0 mm pitch Colour: Green ### Phoenix Contact COMBICON 5.0mm 印刷电路板端子块

Contact COMBICON MKDSN 5.0mm 薄型印刷电路板端子块

Professional range of Phoenix Contact MKDSN Series 5.0 mm pitch terminal blocks offering various different positions.

Various positions available

5.0 mm pitch

Colour: Green

得捷:
TERM BLK 2POS SIDE ENTRY 5MM PCB

欧时:
MKDSN 2,5/2 2way PCB terminal block

立创商城:
5mm 排数:1 每排P数:2

贸泽:
固定接线端子 2P 5mm 90DEG

艾睿:

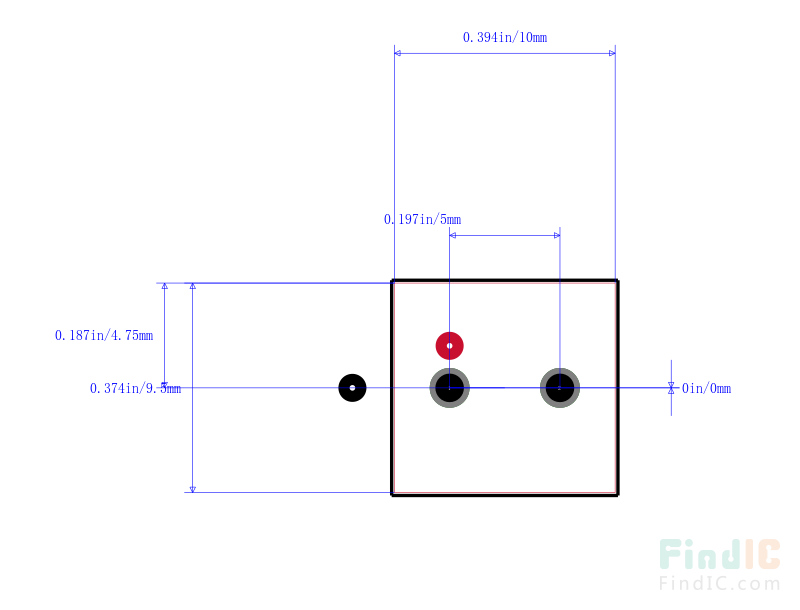

Know that you will have strong connections between circuits when you use Phoenix Contact&s;s 1890963 PCB terminal block. This is a 1-row connector. It has a maximum voltage rating of 250 V@IEC|300V@UL. Its pitch is 5 mm. It has a straight body orientation. 1890963 is housed in polyamide. This device has a maximum current rating of 16@IEC|10@UL A. This product is 10 mm long, 15 mm tall and 9.5 mm deep. Its wire is 14-24@IEC|12-30@UL AWG. It uses the solder termination method.

Allied Electronics:
Conn; Term Blk; PCB; Screw; 2; 5 mm; Front; 24-14 AWG; 16 A; 250 V; Solder

Verical:
Conn PC Terminal Block 2 POS 5mm Solder ST Thru-Hole 24A

MASTER:
PCB terminal block - nominal current: 24 A - rated voltage III/2: 400 V - nominal cross section: 2.5 mm² - pitch: 5 mm - number of positions: 2 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connecti

Online Components:
Conn Terminal Block 2 POS 5mm Solder ST Thru-Hole 16A

Electro Sonic:
PCB terminal block - nominal current: 24 A - rated voltage III/2: 400 V - nominal cross section: 2.5 mm² ...
