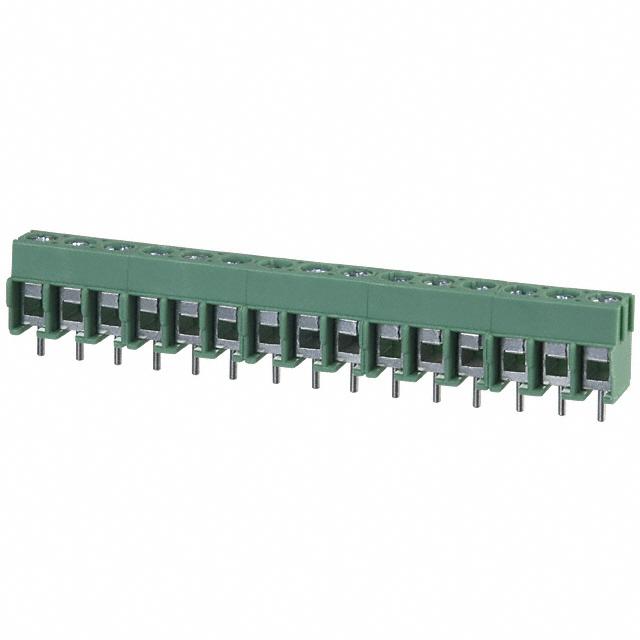

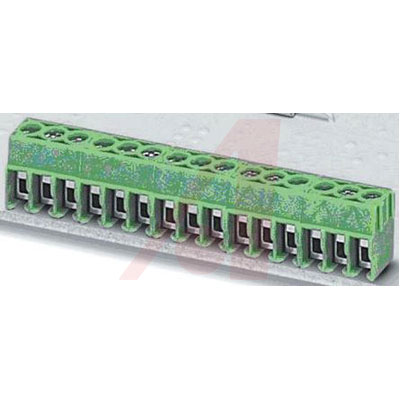

1935297

间距5mm 15位 17.5A 400V 可拼接 螺钉式 直插 可用两位1935161与三位（1935174）拼接

15 接线板 - 线至板 水平，带板 0.197"（5.00mm） 通孔

得捷:
TERM BLK 15P SIDE ENTRY 5MM PCB

艾睿:
This 1935297 PCB terminal block from Phoenix Contact will join multiple circuits by connecting to the bare wire. It has a maximum voltage rating of 250 V. It has a straight body orientation. This is a 1-row connector. Its pitch is 5 mm. 1935297 is housed in polyamide. This device has a maximum current rating of 17.5 A. Its wire is 14-26 AWG. It uses the solder termination method. This product is 75 mm long, 11.4 mm tall and 9 mm deep.

Allied Electronics:
Trm Blk, 15Way/Pole, Solder Terminals, 26 to 14AWG Through Hole, Nylon, 250V

Verical:
Conn PC Terminal Block 15 POS 5mm Solder ST Thru-Hole 17.5A

MASTER:
PCB terminal block - nominal current: 17.5 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - pitch: 5 mm - number of positions: 15 - connection method: Screw connection with wire protector - mounting: Wave soldering - conductor/PCB conne

Online Components:
Conn Terminal Block 15 POS 5mm Solder ST Thru-Hole 17.5A

Electro Sonic:
PCB terminal block - nominal current: 17.5 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² ...
