1971567-2

TE CONNECTIVITY  1971567-2  板至板连接, 雌雄同体, 1971567 Series, 4 触点, 插座, 3 mm, 表面安装　, 1 排

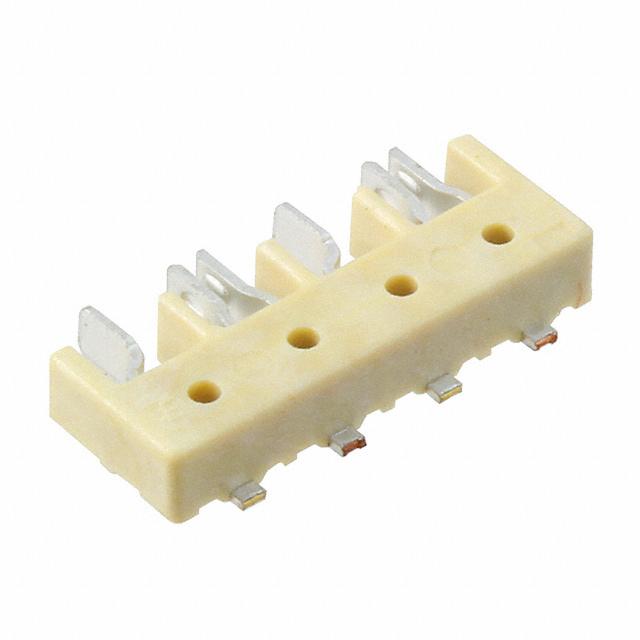

The is a 4-position 1-row right-angle Miniature Hermaphroditic Connector with tin-plated copper alloy contacts and a natural colour LCP housing. The low profile SMT miniature hermaphroditic board-to-board connector is designed to provide power between adjacent linear printed circuit boards. It is ideal for use in compact spaces with features designed for vacuum pick and place that make it suitable for high volume automated manufacturing. It features reduce assembly time, minimize inventory with connectors that mate and un-mate to themselves horizontally and vertically.

.

Connect data and control signals with 4-position hermaphroditic version

.

Automate production with flat top surface for vacuum pick and place assembly

.

Supports reflow processing with high temperature material

.

3A Maximum current rating

.

300VAC Dielectric withstanding voltage
