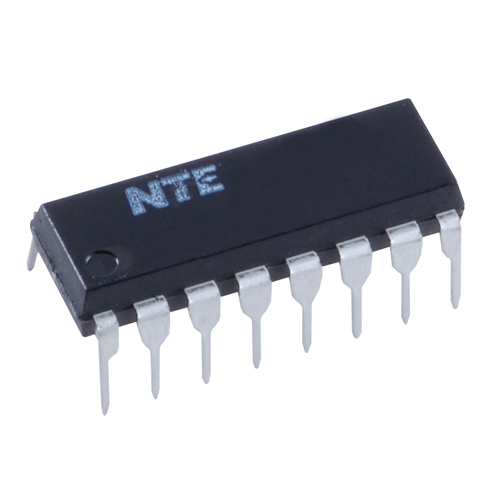

Integrated Circuit 7 Segment Darlington Transistor Array 16Pin PDIP
Description:
The is a 7–channel sink driver in a 16–Lead DIP type package and consists of 14 NPN transistors connected to form seven high current gain driver pairs.
Features:
• High Output Sustaining Voltage to 40V
• High Output Sink Current to 400mA
• PMOS Compatible Input
• Wide Operating Temperature Range TA = –20° to +75°C
Application:
Relay and printer driver, LED or Incandescent display digit driver, Interfacing for standard MOS/BI POLAR logics.
Function:
The NTE2079 is comprised of seven NPN Darlington drivers pairs with 20kΩ series input resistors. All emitters and the substrate are connected together to Pin8. The outputs are capable of sinking 400mA and will withstand 40V in the OFF state.
