2214913-5概述

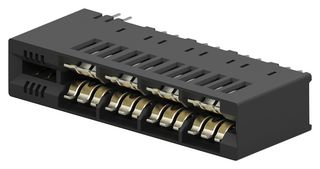

连接器, MULTI-BEAM CE Series, 16 触点, 卡边缘, 插座, 压配合

"s next generation MULTI-BEAM card edge connectors deliver the best overall power and signal density to address server market requirements for performance, profile and cost. MULTI-BEAM card edge connectors are also applicable in global data communication applications to decrease costs. These products are the next generation card edge connectors over the current SEC-II power card edge products and deliver superior current and signal density with a unique design. The scalable and modular features also support greater flexibility in configuration and PCB design.

.
Highest signal density in the market with 60% signal space savings signal pitch 1.00mm, power pitch 7.26mm
.
The series provide better gatherability for blind-mate applications: +/-2.0mm X, +/-1.54mm Y and supports two PCB thickness: 1.57mm and 2.36mm
.
Current Rating: Power contact: up to 43A; Signal contact: up to 2A
.
Voltage Rating: Power: 100V max.; Signal: 60V max.
.
Mechanical shock and vibration resistant
.
Low mating force: 6N max. per power contact; 1.5N max. per signal contact
.
Durability: 200 mating cycles
2214913-5中文资料参数规格
技术参数

触点电镀 Gold

排数 2

针脚数 16

拔插次数 200

工作温度Max 105 ℃

工作温度Min -55 ℃

额定电压Max 100 VAC

封装参数

安装方式 Through Hole

封装 -

外形尺寸

高度 15.5 mm

封装 -

物理参数

颜色 Black

触点材质 Copper Alloy

其他

产品生命周期 Active

制造应用 电信, 工业自动化, Power, 电源管理, 通信与网络, Signal, 数据/计算

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

数据手册

在线购买2214913-5
型号: 2214913-5
制造商: TE Connectivity 泰科
描述:连接器, MULTI-BEAM CE Series, 16 触点, 卡边缘, 插座, 压配合
