V56CH8

CH系列 45 VDC 35V RMS 107V 钳位 100A 700pF 表面贴装 压敏电阻

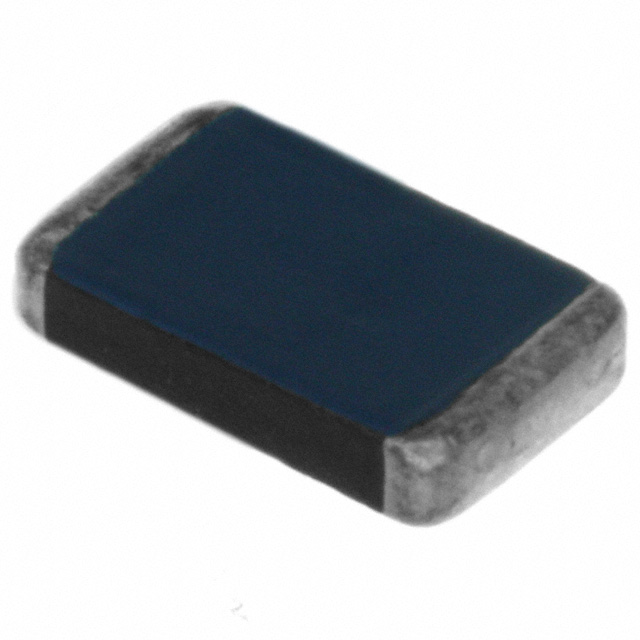

Provide proper variable resistance to your circuit by using this MOV from . This device"s clamping current is 5 A and clamping voltage is 107 V. Its maximum surge current is 100 A. This voltage dependent resistor has an operating temperature of -55 to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. Its capacitance value is 700pF. This device is made with metal oxide technology. The maximum AC voltage rating is 35 VAC and the maximum DC voltage rating is 45 VDC. This varistor has a voltage of 56 V. This product is 8.51 mm long, 2.03 mm tall and 5.26 mm deep.
