QAK2G155KTP

QAK2G155KTP图片1
QAK2G155KTP概述

Cap Film 1.5uF 400V PET 10% 30 X 13 X 22.5mm Axial 85℃

1.5µF Film Capacitor Polyester, Metallized Axial


立创商城:
1.5uF ±10% 400V


贸泽:
Film Capacitors 1.5uF 400 Volts 10%


艾睿:
This QAK2G155KTP film capacitor from Nichicon is ideal for voltage smoothing, and would make any filter or audio based design better for the smoothest signal. It can withstand a voltage of 400 VDC. This part has a maximum operating temperature of 85 °C. Its capacitance value is 1.5uF. It has a tolerance of 10%. The QAK2G155KTP part has an axial termination style. This part has a lead diameter of 0.8 mm. This product is 30Max mm long, 22.5Max mm tall and 13Max mm deep.


Chip1Stop:
Cap Film 1.5uF 400V PET 10% 30 X 13 X 22.5mm Axial 85℃


QAK2G155KTP中文资料参数规格
技术参数

额定电压DC 400 V

电容 1.5 µF

容差 ±10 %

工作温度Max 85 ℃

工作温度Min -40 ℃

封装参数

安装方式 Through Hole

引脚数 2

封装 Axial

外形尺寸

长度 30 mm

宽度 22.5 mm

高度 22.5 mm

脚长度 35 mm

封装 Axial

厚度 13 mm

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 通用

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

QAK2G155KTP引脚图与封装图

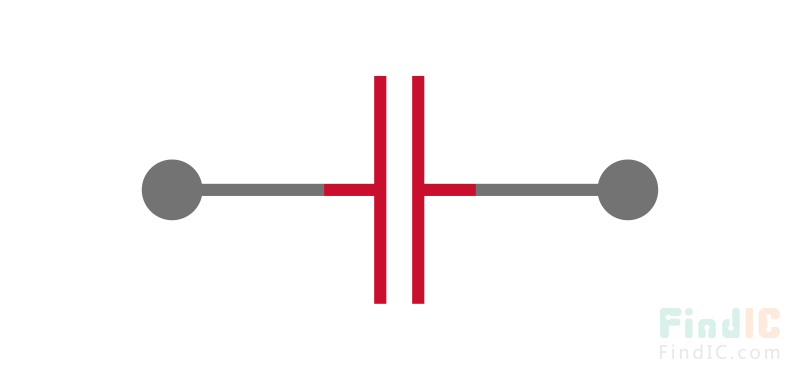

QAK2G155KTP引脚图

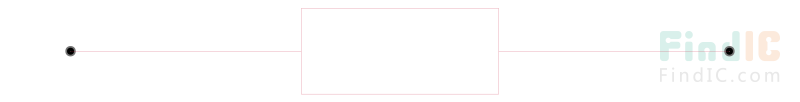

QAK2G155KTP封装图
QAK2G155KTP封装焊盘图
在线购买QAK2G155KTP
型号: QAK2G155KTP
制造商: Nichicon 尼吉康
描述:Cap Film 1.5uF 400V PET 10% 30 X 13 X 22.5mm Axial 85℃
