R1G133-AA65-02

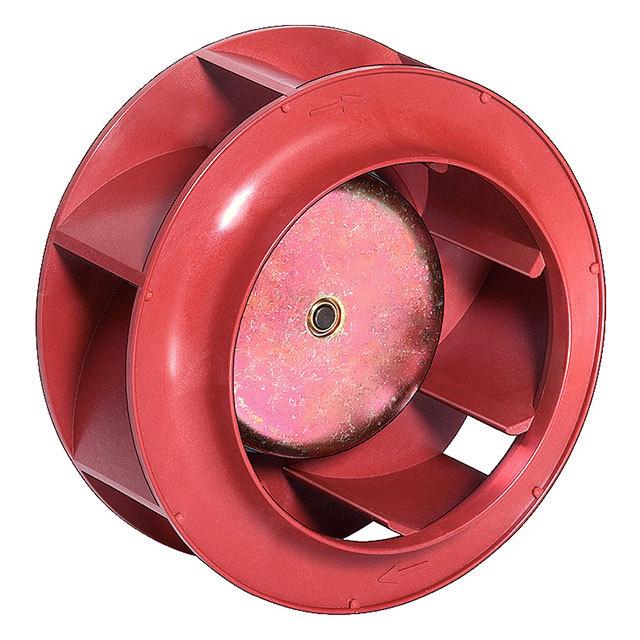

R1G133-AA65-02图片1
R1G133-AA65-02图片2
R1G133-AA65-02图片3
R1G133-AA65-02图片4
R1G133-AA65-02图片5
R1G133-AA65-02图片6

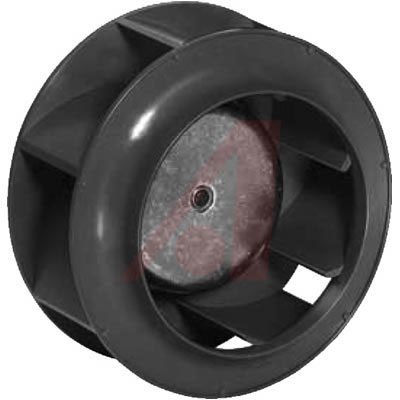

R1G133-AA65-02图片7

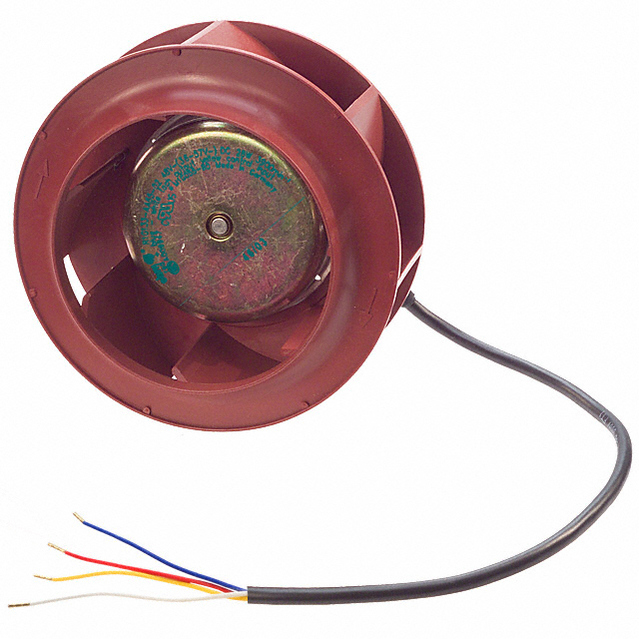

R1G133-AA65-02图片8
R1G133-AA65-02图片9
R1G133-AA65-02图片10
R1G133-AA65-02概述

R1G133 系列 133 直径 x 91 Dmm 离心式 鼓风机, 360m³/h, 48 V 直流

133 mm 5.24" diameter DC motorized impeller. Impeller completely made of plastic. Clockwise rotation with integrated electronics with reverse polarity and locked-rotor protection.


得捷:
FAN IMP MTRZD 133X91MM 48VDC


艾睿:
DC Motorized Impeller Centrifugal Ball Bearing 48V 36V to 57V


Allied Electronics:
Impeller, Motorized; Centrifugal; VDC; 28 W; 63 dBA; 212 CFM; Ball; Leaded


安富利:
DC Motorized Impeller Ball Bearing 48V 0.7A 28W 3900RPM Flange Mount


Chip1Stop:
DC Motorized Impeller Centrifugal Ball Bearing 48V 36V to 57V


MASTER:
DC Motorized Impeller Centrifugal Ball Bearing 48V 36V to 57V


AMEYA360:
R1G133 系列 133 直径 x 91 Dmm 离心式 鼓风机, 360m³/h, 48 V 直流


Electro Sonic:
DC Motorized Impeller Centrifugal Ball Bearing 48V 36V to 57V


R1G133-AA65-02中文资料参数规格
技术参数

电源电压DC 48.0 V

额定电压DC 48.0 V

额定电流 0.700 A

额定功率 28 W

输入电压DC 48.0 V

工作温度Max 60 ℃

工作温度Min -25 ℃

额定电压 48 V

电源电压 48 VDC

封装参数

安装方式 Screw

外形尺寸

宽度 91 mm

高度 91 mm

直径 133 mm

物理参数

重量 680.4 g

工作温度 -25℃ ~ 60℃

外壳材质 Thermoplastic

其他

产品生命周期 Active

包装方式 Box

符合标准

RoHS标准 RoHS Compliant

含铅标准

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

HTS代码 8414596090

数据手册

在线购买R1G133-AA65-02
型号: R1G133-AA65-02
制造商: EBM-Papst
描述:R1G133 系列 133 直径 x 91 Dmm 离心式 鼓风机, 360m³/h, 48 V 直流
