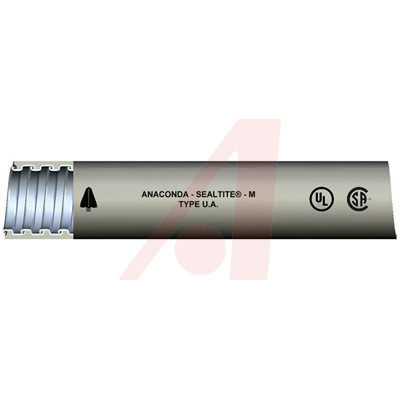

Anaconda Sealtite®1/2 UAG 1000" REEL
**Thermoplastic PVC jacket with integral bonding wire 3/8" through 1-1/4"
Features:
* **Constructed of continuously interlocked hot dipped zinc galvanized steel core for exceptional crush and corrosion resistance.
**
* **Durable, sunlight resistant and flame retardant thermoplastic PVC jacket that resists heat, oil and chemical breakdown.
**
* **Convieniet markings in feet for easy measurement
Conduit shall be Anaconda SEALTITE Type UA. Conduit shall provide a flexible liquid-tight raceway for wiring and shall be constructed of continuously interlocked hot dipped zinc galvanized steel core with an integral bonding wire in sizes 3/8" thru 1-1/4". Conduit shall have a sunlight resistant and flame retardant PVC jacket in electrical trade sizes 3/8" thru 4". Conduit shall be UL listed, CSA certified and IP 67 rated when installed with approved end connectors.
Where UL Listing is Required and Conduit Grounding is Necessary
**Temperature Range: -40…F to +176…F -40…C to +80…C
Installation:
**Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.
Approved for both exposed and concealed locations. Rated for temperature ranges -40…F to + 176…F -40…C to +80…C.
Approved as an equipment grounding conductor in sizes 3/8" through 1-1/4" if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 3/8" and 1/2" and 60 amps or less for 3/4" through 1-1/4".
Suitable for use in hazardous locations per NEC Articles 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2.
Manufactured in a full range of trade sizes from 3/8" through 4".
Approved for direct burial and in concrete trade sizes 3/8" through 4".
Complies with UL Standard 360 File No. E18917; CSA C22.2 File No. 158897; and NEC Article 350.
