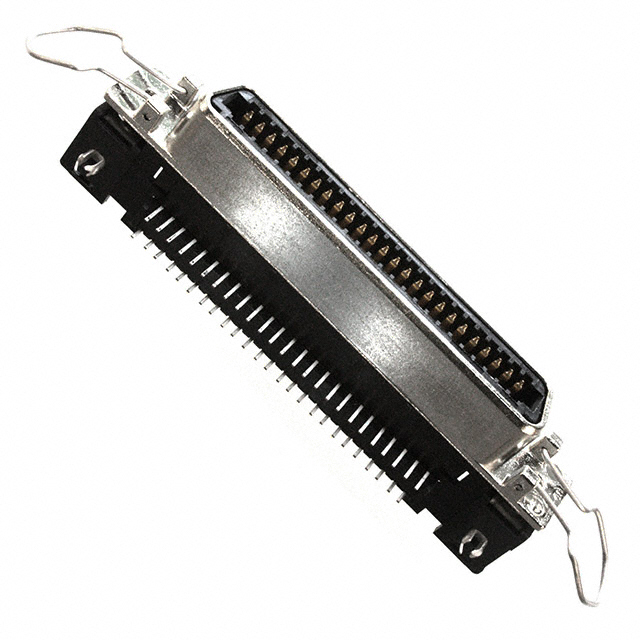

5555149-3

CHAMP 50 位置 直角 插座 0.085 带状 PCB 连接器

50 位置 插座 - 通孔，直角 焊接

得捷:
CONN RCPT 50POS R/A SOLDER

贸泽:
I/O Connectors RA 50P RECPT SHLD

艾睿:
There&s;s nothing easier than this ieee 488 5555149-3 interface connector from TE Connectivity for controlling your user inputs and outputs. This RCP connector&s;s 50 contacts that are made out of copper alloy and plated with gold over nickel. It has a right angle body orientation. Its pitch is 2.16 mm. It has a receptacle type gender. This connector has a single port. 5555149-3 is housed in polyester. Its 50 terminals use the solder termination method. This product is 12.7 mm tall. This interface connector has an operating temperature range of -40 °C to 105 °C.

安富利:
Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port

Chip1Stop:
Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port

Verical:
Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port

Newark:
50POS,RTANG,RCPT,EXT SHLD

MASTER:
RCPT ASSY, LPF, EXT SHLD, RTANG, 50 POSN, BD LK, BAIL LK, CHAMP

Powell:
2.16 [.085] Printed Circuit Board Connectors

Online Components:
RCPT ASSY, LPF, EXT SHLD, RTANG, 50 POSN, BD LK, BAIL LK, CHAMP

Electro Sonic:
50POS,RTANG,RCPT,EXT SHLD
