2SC5085-Y

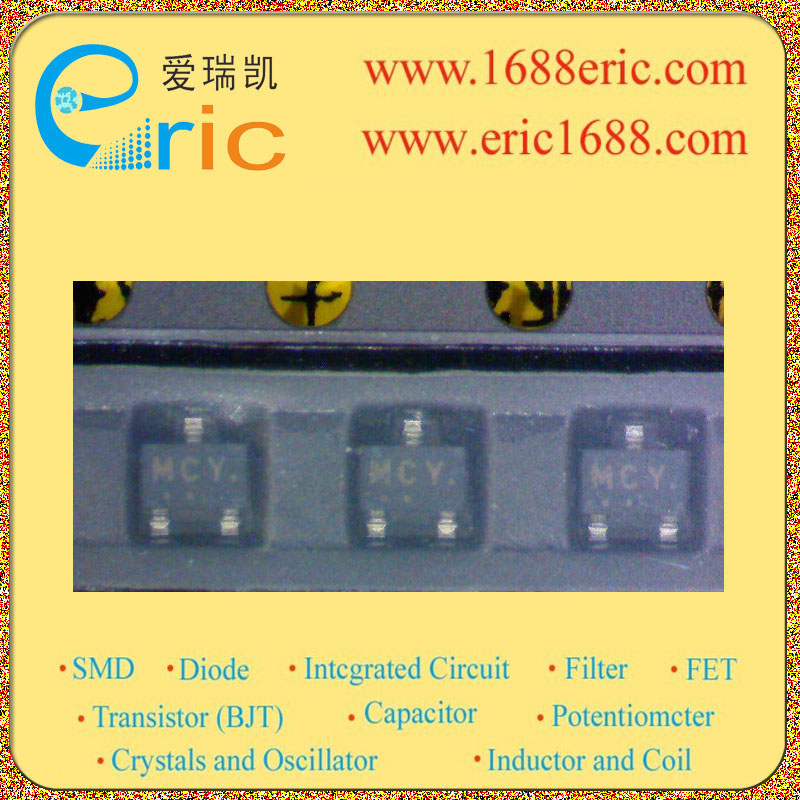

2SC5085-Y NPN三极管 20V 80mA 7GHz 80~160 SOT-323/SC-70/USM marking/标记 MCY VHF/UHF宽频带放大器

集电极-基极反向击穿电压VBRCBOCollector-Base VoltageVCBO| 20V \---|--- 集电极-发射极反向击穿电压VBRCEOCollector-Emitter VoltageVCEO| 12V 集电极连续输出电流ICCollector CurrentIC| 80mA 截止频率fTTranstion FrequencyfT| 7GHz 直流电流增益hFEDC Current GainhFE| 80~160 管压降VCE（sat）Collector-Emitter Saturation Voltage| 耗散功率PcPower Dissipation| 100mW/0.1W Description & Applications| Silicon NPN epitaxial planar type VHL ~ UHF band low noise amplifier application Features • High gain |S21e

.

2=11db • Low noise figure NF=1.1db 描述与应用| NPN硅外延平面型  VHL〜UHF频段低噪声放大器的应用  特点 •高增益| S21E|* 2 =11分贝 •低噪声系数NF=1.1分贝
