2SA1201

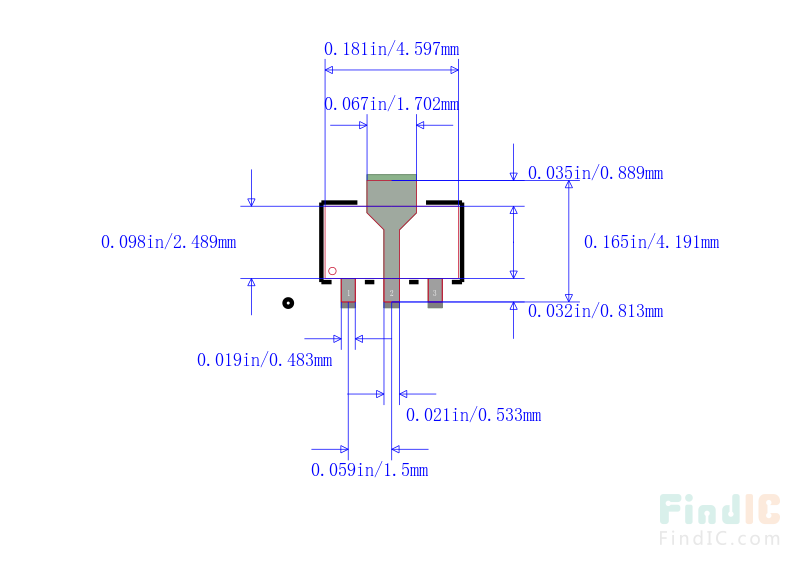

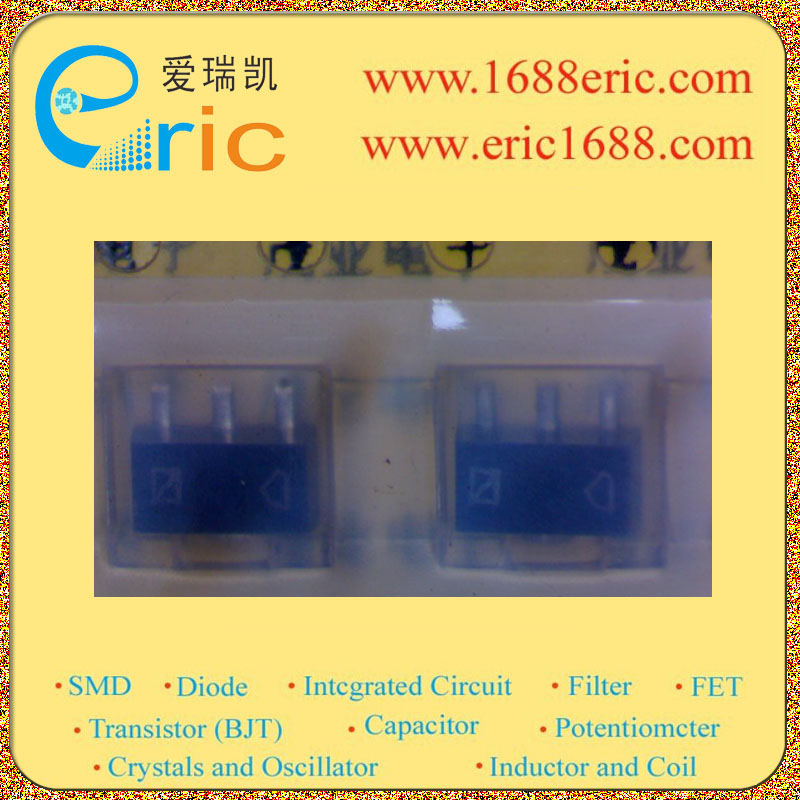

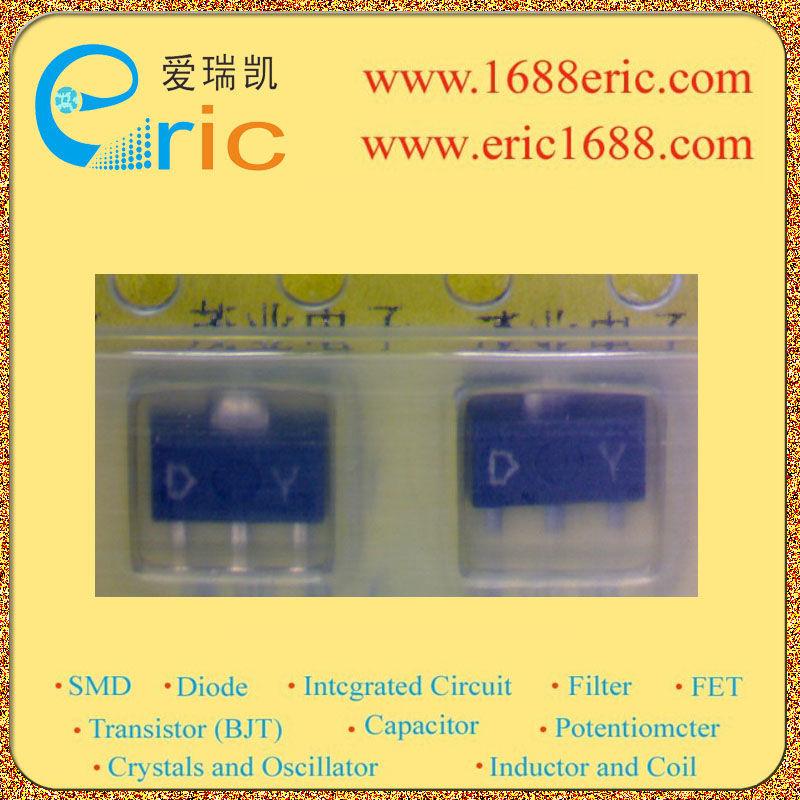

2SA1201 PNP三极管 -120V -800mA/-0.8A 120MHz 80~160 -1000mV/-1V SOT-89/SC-62 marking/标记 DO 电压/功率放大器

集电极-基极反向击穿电压VBRCBOCollector-Base VoltageVCBO | -120V \---|--- 集电极-发射极反向击穿电压VBRCEOCollector-Emitter VoltageVCEO | -120V 集电极连续输出电流ICCollector CurrentIC | -800mA/-0.8A 截止频率fTTranstion FrequencyfT | 120MHz 直流电流增益hFEDC Current GainhFE | 80~160 管压降VCE（sat）Collector-Emitter SaturationVoltage | -1000mV/-1V 耗散功率PcPoWer Dissipation | 500mW/0.5W Description & Applications | Voltage Amplifier Applications Power Amplifier Applications • High voltage: VCEO = −120 V • High transition frequency: fT = 120 MHz typ. • Small flat package • PC = 1 to 2 W mounted on a ceramic substrate • Complementary to 2SC2881 描述与应用 | 电压放大器的应用 功率放大器应用 •高电压：VCEO=-120V •高转换频率：FT =120兆赫（典型值） •小型扁平封装 •PC= 12 W（安装在陶瓷基板上） •互补2SC2881
