5023861070

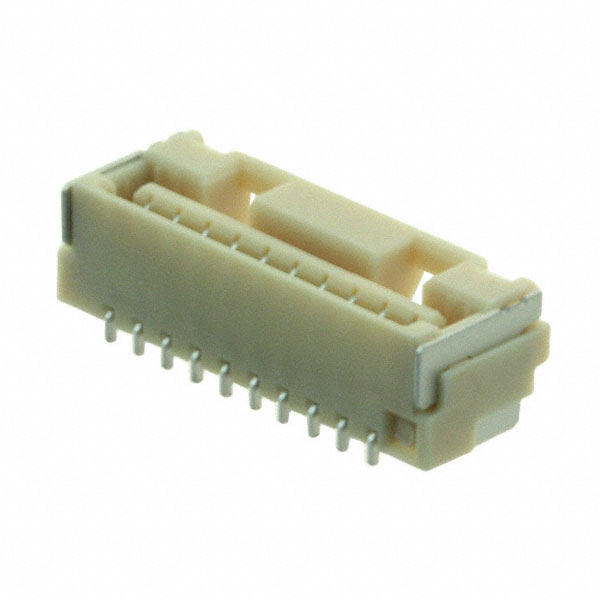

1.25毫米（ .049 “ ）间距CLIK -伴侣™线对板PCB插座 1.25mm .049" Pitch CLIK-Mate™ Wire-to-Board PCB Receptacle

10 Position Receptacle Connector Surface Mount, Right Angle

得捷:
CONN RCPT 10P 0.049 TIN SMD R/A

艾睿:
Mount this wire to board 5023861070 header connector from Molex on a jumper post on your PCB to support physical configuration options. This RCP connector&s;s 10 contacts that are made out of copper alloy and plated with tin over nickel. Its pitch is 1.25 mm. It has a right angle body orientation. It has a receptacle type gender. This is a 1-row connector. It has a maximum voltage rating of 50 VDC|50VAC. This device has a maximum current rating of 1 A/contact. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This connector has an operating temperature of -25 to 85 °C. It uses the solder termination method. 5023861070 is housed in natural high temperature thermoplastic. This product is 15.85 mm long, 5.55 mm tall and 5 mm deep.

TME:
Socket; wire-board; male; PIN:10; 1.25mm; SMT; Clik-Mate; 1A; 50V

Verical:
Conn Wire to Board RCP 10 POS 1.25mm Solder RA Side Entry SMD CLIK-Mate™ T/R
