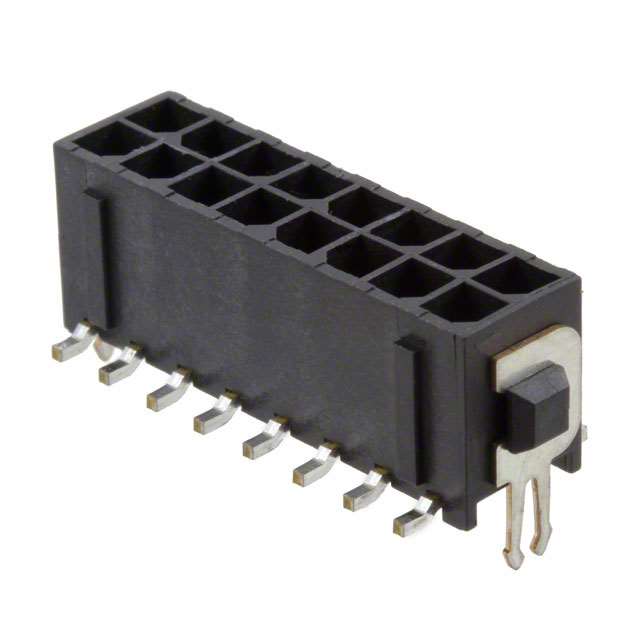

4-794633-6图片1
4-794633-6图片2
4-794633-6图片3
4-794633-6图片4
4-794633-6图片5
4-794633-6图片6
4-794633-6图片7
4-794633-6图片8
4-794633-6图片9
4-794633-6图片10
4-794633-6概述

16 位置 双排 垂直 安装 有接触体 针座

Use this power connector from to power up your circuit without having to worry about energy seepage. This HDR connector"s 16 contacts that are made out of brass and plated with tin over nickel. It has a straight body orientation. It has a maximum voltage rating of 250 VAC. This connector has a single port. It has a header type gender. Its pitch is 3 mm. This device has a maximum current rating of 5 A/contact. 4-794633-6 is housed in nylon. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 9.24 mm tall. Its 16 terminals use the solder termination method. This power connector has an operating temperature range of -40 °C to 105 °C.

4-794633-6中文资料参数规格
技术参数

触点数 16

触点电镀 Tin

绝缘电阻 1000 MΩ

排数 2

方向 Vertical

易燃性等级 UL 94 V-0

针脚数 16

拔插次数 10

额定电流Max 5A/触头

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压Max 250 VAC

封装参数

安装方式 Surface Mount

外形尺寸

长度 28 mm

高度 9.24 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Brass

工作温度 -40℃ ~ 105℃

外壳材质 Nylon

其他

产品生命周期 Active

包装方式 Tray

制造应用 通用, Power

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

数据手册

在线购买4-794633-6
型号: 4-794633-6
制造商: TE Connectivity 泰科
描述:16 位置 双排 垂直 安装 有接触体 针座
替代型号4-794633-6
型号/品牌 代替类型 替代型号对比

4-794633-6

TE Connectivity 泰科

当前型号

当前型号

1-794633-6

泰科

功能相似

4-794633-6和1-794633-6的区别
