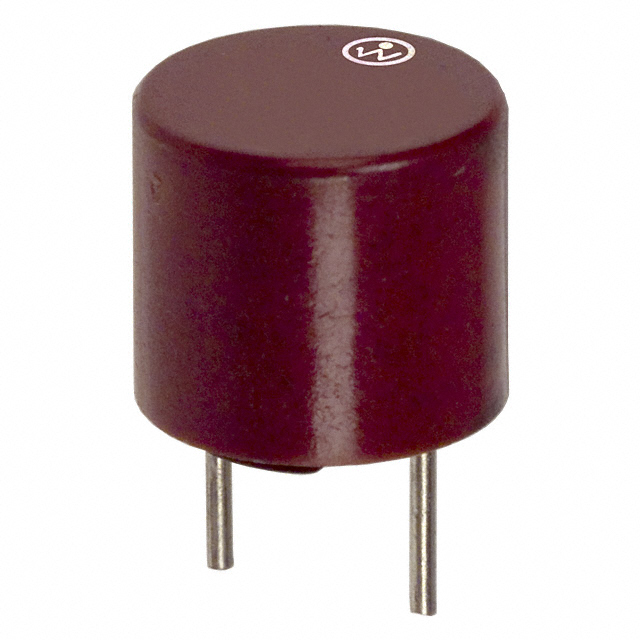

372 系列 延时 250 V 2.5 A 8.5 x 8 mm TR5® 径向引线 保险丝
2.5A 250V AC DC Fuse Board Mount Cartridge Style Excluded Through Hole Radial, Can, Vertical
得捷:
FUSE BOARD MOUNT 2.5A 250VAC RAD
立创商城:
250VAC 2.5A
贸泽:
带引线的保险丝(通孔型) IEC TL LBC SL 2.5A TR5
艾睿:
A great alternative to a circuit breaker, this a subminiature 37212500411 fuse from Littelfuse will protect your electronics. This device has a maximum power dissipation of 0.7 W. This device has a current rating of 2.5. Its maximum power dissipation is 0.7 W. This fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. The 37212500411 fuse has a radial termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. This product is 8Max mm tall with a diameter of 8.5 mm.
Allied Electronics:
FUSE BOARD MOUNT 2.5A 250VAC RAD
Jameco:
Fast Acting Fuse Subminiature 2.5 Amp 250V Slow Blow
Chip1Stop:
Fuse Subminiature Slow Blow Acting 2.5A 250V Radial 8.5 X 8mm Bulk
TME:
Fuse: fuse; time-lag; 2.5A; 250VAC; TR5; Package: bag
Verical:
Fuse Subminiature Slow Blow Acting 2.5A 250V Radial 8.5 X 8mm Polyamide 66 Bulk CCC/CQC/KC/SEMKO/UL/VDE/cULus
儒卓力:
**2.5A 250V slow TR5 IEC short **
额定电压DC 250 V
额定电压AC 250 V
额定电流 2.5 A
易燃性等级 UL 94 V-0
耗散功率 0.7 W
电阻 0.02 Ω
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 0.7 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
长度 8 mm
高度 8 mm
直径 8.50 mm
封装 Radial, CAN
颜色 Brown
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
37212500411 Littelfuse 力特 | 当前型号 | 当前型号 |
37212500431 力特 | 完全替代 | 37212500411和37212500431的区别 |
37212500001 力特 | 完全替代 | 37212500411和37212500001的区别 |
37212500511 力特 | 完全替代 | 37212500411和37212500511的区别 |
