415487-1概述

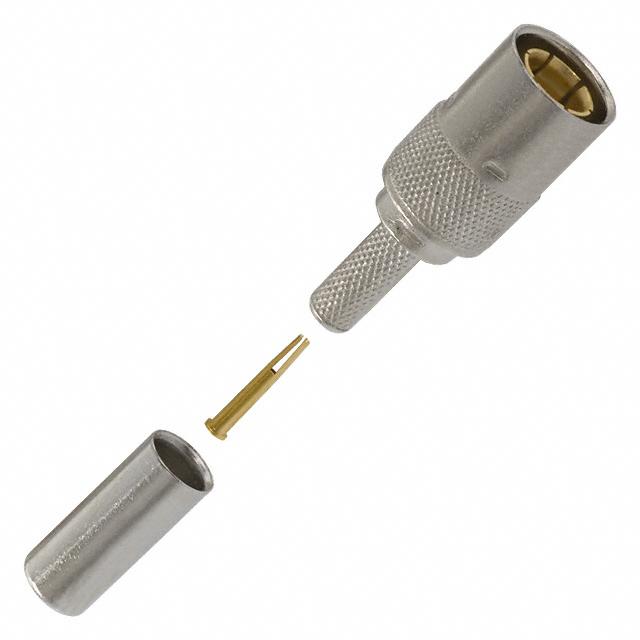

RF连接器/同轴连接器 PLUG CBL MINI-SMB 75

The mini-smb RF connector from will make sure your RF components are shielded properly when connected. This connector"s body is plated in nickel. It has a plug type gender. It has a straight body orientation. It has an operating frequency of 0 to 4G Hz. This product is 17.78 mm long with a diameter of 6.35 mm. It uses the crimp termination method. This rf connector has an operating temperature of -65 to 165 °C.

415487-1中文资料参数规格
技术参数

极性 Male

触点电镀 Gold

绝缘电阻 1000 MΩ

工作温度Max 165 ℃

工作温度Min -65 ℃

额定电压 335 V

物理参数

外壳颜色 Silver

触点材质 Beryllium Copper

介质材料 Teflon

工作温度 -65℃ ~ 165℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 Non-Compliant

含铅标准 Lead Free

ELV标准 Non-Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694010

数据手册

在线购买415487-1
型号: 415487-1
制造商: TE Connectivity 泰科
描述:RF连接器/同轴连接器 PLUG CBL MINI-SMB 75
替代型号415487-1
型号/品牌 代替类型 替代型号对比

415487-1

TE Connectivity 泰科

当前型号

当前型号

5415487-1

泰科

完全替代

415487-1和5415487-1的区别
