38211-0110

38211-0110图片1
38211-0110图片2
38211-0110图片3
38211-0110图片4
38211-0110图片5
38211-0110图片6
38211-0110图片7

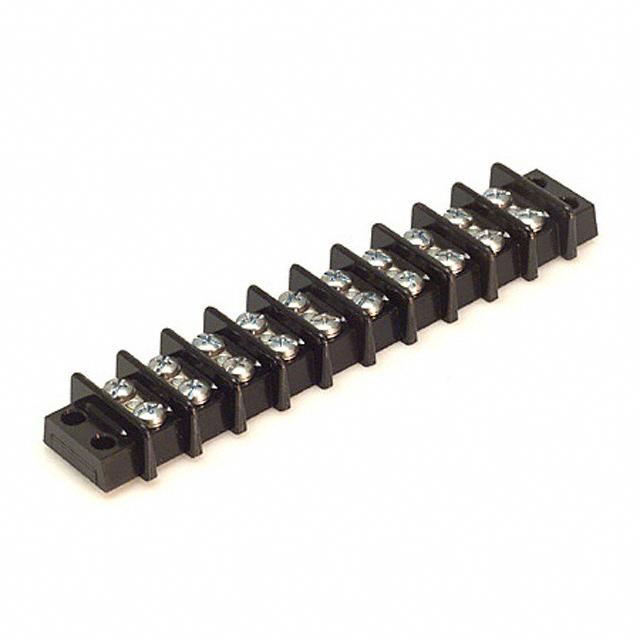

38211-0110图片8
38211-0110概述

Conn Barrier Strip 20POS 14.29mm Screw ST Panel Mount

** 38210 & 38211 Series Terminal Strips**

The Molex 38210 and 38211 series of terminal strips come with complete assurance of quality and reliability. These terminal strips come complete with a 14.29mm pitch size. Both will range from 2 positions to 12 positions.


得捷:
CONN BARRIER STRP 10CIRC 0.563"


贸泽:
Barrier Terminal Blocks .563 PHENOLIC 10P closed bottom


Allied Electronics:
Conn; Term Strip; 10; 14.29 mm; Double Row; Series 21000CB; 30 A; Clsd back


Chip1Stop:
Conn Barrier Strip 20 POS 14.29mm Screw ST Panel Mount


38211-0110中文资料参数规格
技术参数

触点数 10

线规 10AWG ~ 18AWG

触点电镀 Nickel

额定电流 30 A

排数 2

电路数 10

易燃性等级 UL 94 V-0

针脚数 10

安装角度 180 °

额定电压 300 V

封装参数

安装方式 Chassis, Screw

引脚间距 14.3 mm

外形尺寸

长度 167.5 mm

宽度 6.19 mm

高度 16 mm

引脚间距 14.3 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Brass

工作温度 150 ℃

外壳材质 Plastic

其他

产品生命周期 Unknown

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买38211-0110
型号: 38211-0110
制造商: Molex 莫仕
描述:Conn Barrier Strip 20POS 14.29mm Screw ST Panel Mount
