POMONA 4513 香蕉插头, 小型, 5A, 塔式

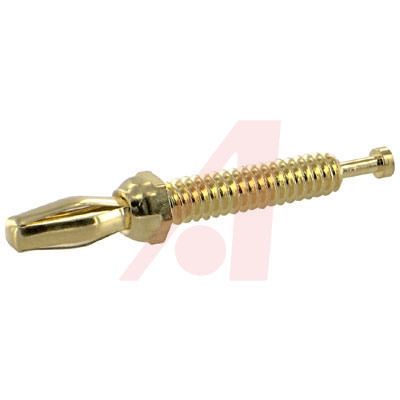

Miniature Banana Plug With Threaded Stud, Voltage Rating 2500 VDC

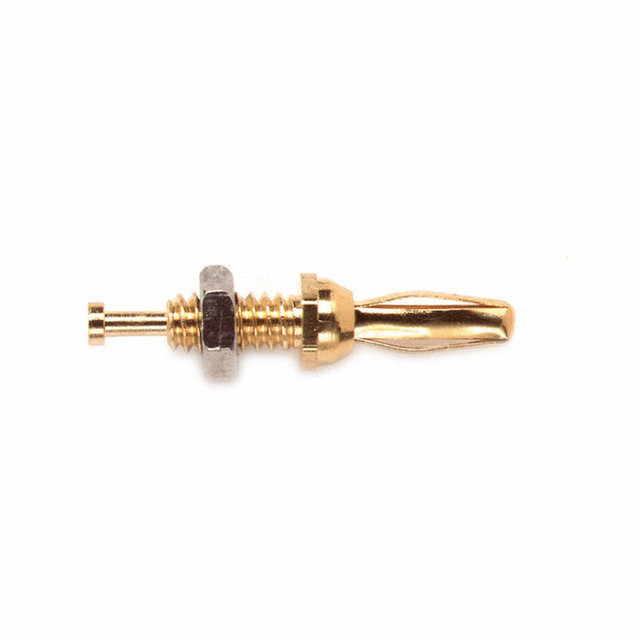

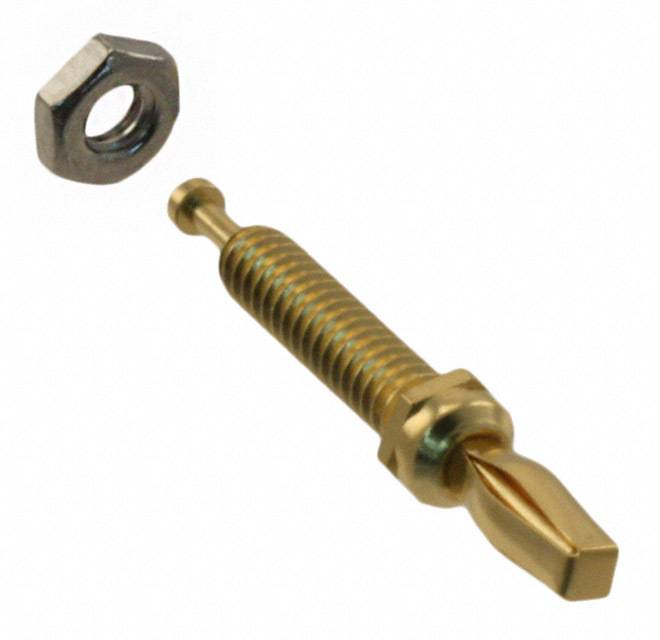

Threaded stud for rapid mounting. Solder turret for attachment of wires. Furnished with nickel-plated 4-40 hex nut, unassembled.- .
- * Material: ** Miniature banana plug body — Brass; Spring — one-piece heat-treated beryllium copper. Fits miniature 2.6 0.104 dia. banana jack. ** Finish:** Gold-plated. ** Rating:** 2500 VDC, 5 amps.
得捷:
CONN BANANA PLUG MINIATURE THRD
立创商城:
4513
贸泽:
Test Plugs & Test Jacks MINI B-PLUG 4-40X.48
e络盟:
香蕉插头, 小型, 5A, 塔式
艾睿:
Use the banana plug 4513 test terminal block from Pomona to test performance of your equipment. This M connector&s;s a single contact that is made out of beryllium copper and plated with gold. It has a male type gender. It has a straight body orientation. This connector has a single port. This device has a maximum current rating of 5 A. This product is 25.65 mm long and 3.96 mm. It uses the solder termination method. 4513 is housed in brass.
Allied Electronics:
Banana Plug; Plug; 5 A Max.; Gold Plated Brass; Gold Plated Beryllium Copper
Verical:
Conn Banana Plug M 1 POS Solder ST Panel Mount 1 Port Bag
Newark:
# POMONA 4513 Banana Test Connector, Plug, Panel Mount, 5 A, 2.5 kV, Gold Plated Contacts
MASTER:
Conn Banana Plug M 1 POS Solder ST Panel Mount 1 Port Bag
Electro Sonic:
Conn Banana Plug M 1 POS Solder ST Panel Mount 1 Port Bag
