74HC238N,652参数规格_中文资料_数据手册PDF

74HC238N,652概述

74HCT238 - 3-to-8 line decoder/demultiplexer DIP 16Pin

Safety is important to allow for products to safely fail, implement this from Semiconductors to decode multiplexed or non-binary data. This decoder has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product comes packaged in bulk, so the parts will be stored loosely. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.

74HC238N,652中文资料参数规格

技术参数

电源电压DC 2.00V min

输出接口数 8

输入数 3

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压 2V ~ 6V

电源电压Max 6 V

电源电压Min 2 V

封装参数

安装方式 Through Hole

引脚数 16

封装 DIP-16

外形尺寸

高度 3.2 mm

封装 DIP-16

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Obsolete

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

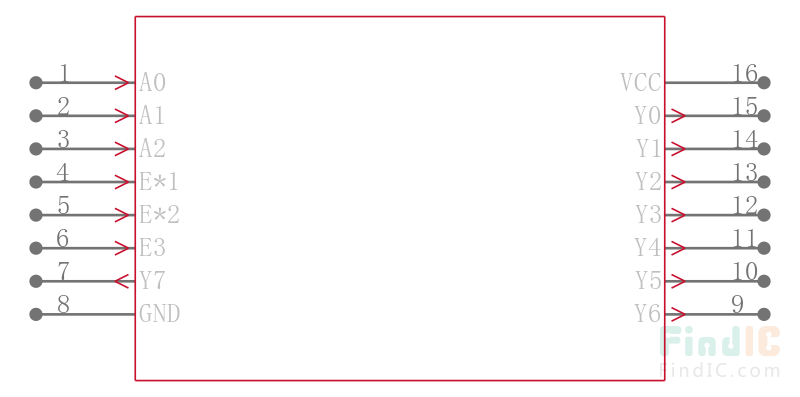

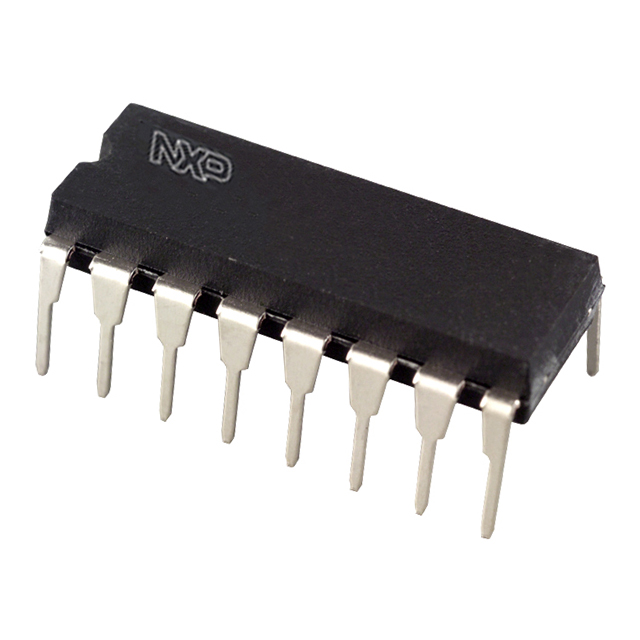

74HC238N,652引脚图与封装图

在线购买74HC238N,652

型号： 74HC238N,652

制造商： NXP 恩智浦

描述：74HCT238 - 3-to-8 line decoder/demultiplexer DIP 16Pin

立即咨询

替代型号74HC238N,652

型号/品牌	代替类型	替代型号对比
74HC238N,652 NXP 恩智浦	当前型号	当前型号
74HC238D,652 恩智浦	完全替代	74HC238N,652和74HC238D,652的区别
M74HC238B1R 意法半导体	功能相似	74HC238N,652和M74HC238B1R的区别
74HC238D 恩智浦	功能相似	74HC238N,652和74HC238D的区别
