499206-3

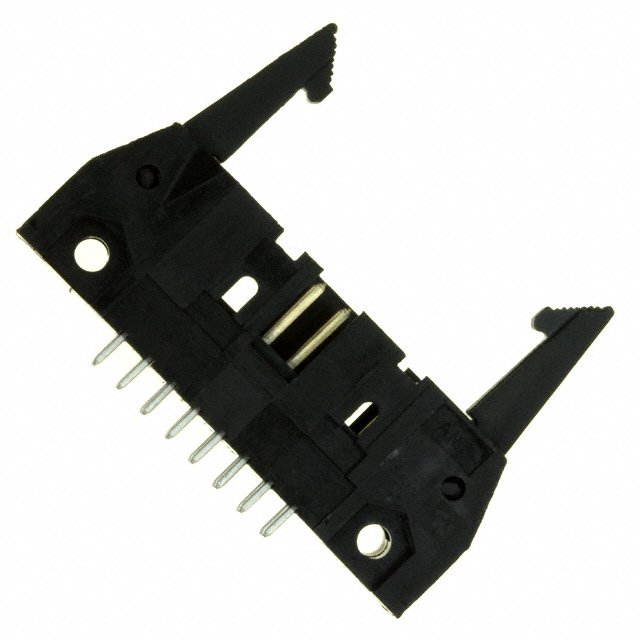

Connector Ejector Header 16Position 2.54mm Solder Straight Through Hole

016 UNIV HDR SP 4S 30DP STD L1

Product Highlights

Connector Type = Universal Ejection Pin Headers

Standard Profile

Number of Positions = 16

2.54 x 2.54 mm Centerline, Matrix

PCB Mount Angle = Vertical

得捷:
CONN HEADER VERT 16POS 2.54MM

贸泽:
Headers & Wire Housings 16P HEADER W/LATCHES 2X8

艾睿:
Support physical configuration options for jumper posts by mounting this ejector 499206-3 header connector from TE Connectivity. This HDR connector has 16 contacts that are plated with gold over palladium nickel over nickel|gold over nickel. It has a maximum voltage rating of 250 VAC. This is a 2-row connector. It has a header type gender. Its pitch is 2.54 mm. It has a straight body orientation. This device has a maximum current rating of 1 A/contact. This component will be shipped in tray format. This connector has an operating temperature of -65 to 105 °C. 499206-3 is housed in black thermoplastic. It uses the solder termination method. This product is 39.62 mm long, 27.3 mm tall and 8.53 mm deep.

Jameco:
Connector Ejector Header 16 Position 2.54mm Solder Straight Through Hole

Chip1Stop:
Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tray

Verical:
Conn Ejector Header HDR 16 POS 2.54mm Solder ST Top Entry Thru-Hole Tray

Powell:
Pin and Pinless Headers AMP-LATCH

Online Components:
016 UNIV HDR SP 4S 30DP STD L1

Electro Sonic:
016 UNIV HDR SP 4S 30DP STD L1

Win Source:
CONN HEADER VERT 16POS 2.54MM / Connector Header Through Hole 16 position 0.100" 2.54mm
