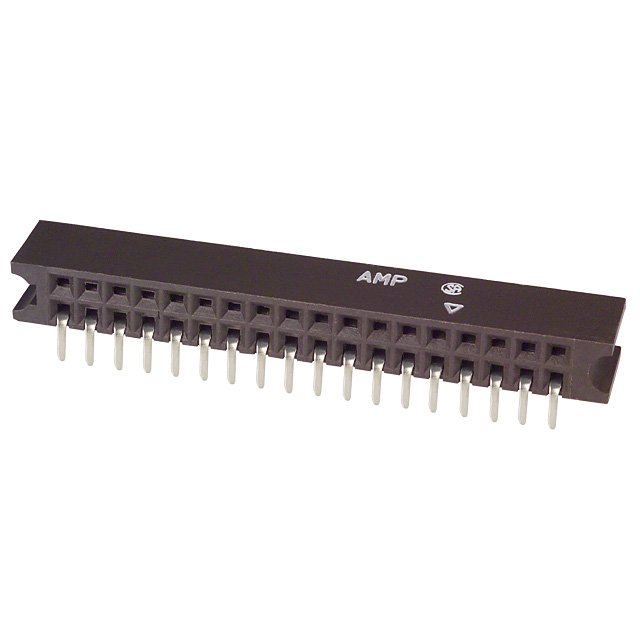

5-532955-6

AMPMODU 2 件式 36 位置 通孔 双排 直角 插座

36 位置 插座 0.100"（2.54mm） 通孔，直角 镀金

得捷:
CONN RCPT 36POS 0.1 GOLD PCB R/A

艾睿:

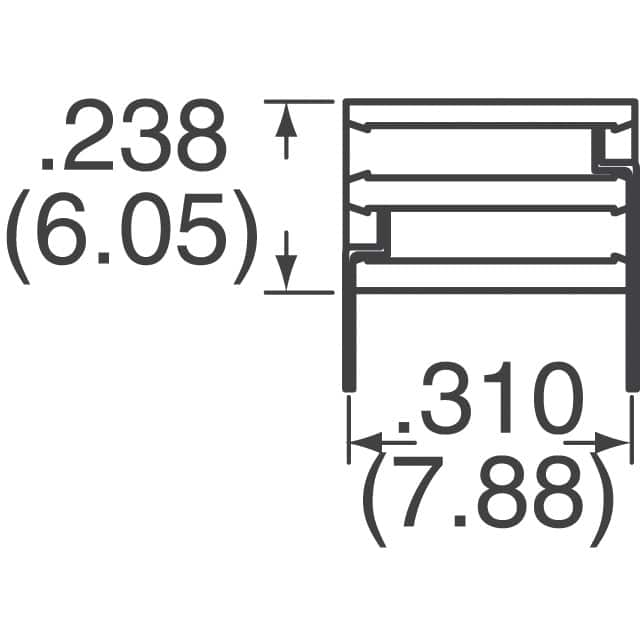

Reduce safety concerns with this socket strip 5-532955-6 header connector from TE Connectivity which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This SKT connector&s;s 36 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a socket type gender. This is a 2-row connector. Its pitch is 2.54 mm. It has a right angle body orientation. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -65 to 105 °C. 5-532955-6 is housed in black thermoplastic. It uses the solder termination method. This product is 52.27 mm long, 6.05 mm tall and 8.13 mm deep.

安富利:
Conn Socket Strip SKT 36 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Socket Strip SKT 36 POS 2.54mm Solder RA Thru-Hole Tube

MASTER:
RECEPTACLE ASSY, MOD II, DBL ROW, 2.54 X 2.54 [.100 X .100] CL, GUIDE PIN EARS, CLOSED ENTRY,

Powell:
.100 inch AMPMODU 2 Piece

Online Components:
36 MODII 2PC CE RCPT ASSY, RoHS

Electro Sonic:
36 MODII 2PC CE RCPT ASSY, RoHS
