5-532956-5

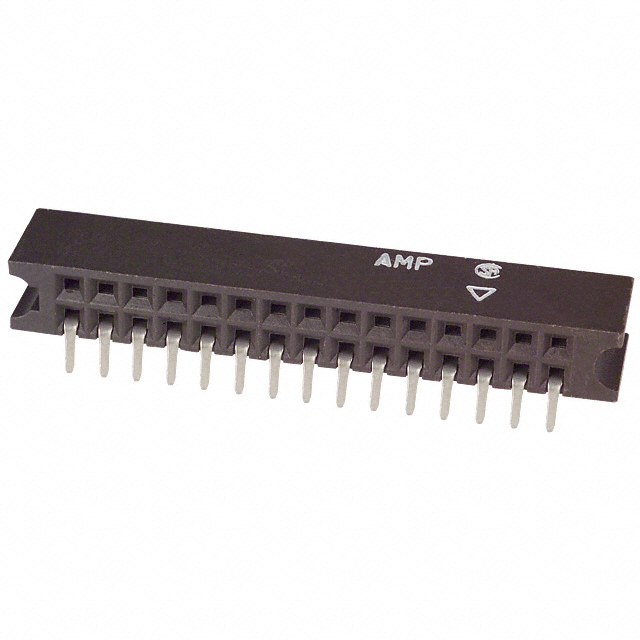

5-532956-5图片1
5-532956-5图片2
5-532956-5图片3
5-532956-5图片4
5-532956-5图片5
5-532956-5图片6
5-532956-5图片7
5-532956-5图片8
5-532956-5图片9
5-532956-5图片10
5-532956-5图片11
5-532956-5图片12
5-532956-5图片13
5-532956-5概述

Conn Socket Strip RCP 30POS 2.54mm Solder RA Thru-Hole

30 位置 插座 0.100"(2.54mm) 通孔,直角 镀金


得捷:
CONN RCPT 30POS 0.1 GOLD PCB R/A


贸泽:
Board to Board & Mezzanine Connectors 30 2PC RCPT CE RCPT ASSY


艾睿:
Protect your printed circuit boards from accidental damages with TE Connectivity&s;s socket strip 5-532956-5 header connector. This SKT connector&s;s 30 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a socket type gender. It has a right angle body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 VAC. This is a 2-row connector. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -65 to 125 °C. 5-532956-5 is housed in black thermoplastic. It uses the solder termination method. This product is 44.65 mm long, 6.05 mm tall and 8.13 mm deep.


安富利:
Conn Socket Strip SKT 30 POS 2.54mm Solder RA Thru-Hole


Verical:
Conn Socket Strip SKT 30 POS 2.54mm Solder RA Thru-Hole Tube


Newark:
# AMP - TE CONNECTIVITY  5-532956-5  30 MODII 2PC CE RCPT ASSY, ROHS New


MASTER:
RECEPTACLE ASSY, MOD II, DBL ROW, 2.54 X 2.54 [.100 X .100] CL, GUIDE PIN EARS, CLOSED ENTRY, SHORT-POINT-OF-CONTACT


Powell:
.100 inch AMPMODU 2 Piece


Electro Sonic:
30 MODII 2PC CE RCPT ASSY, RoHS


5-532956-5中文资料参数规格
技术参数

触点数 30

触点电镀 Gold, Tin

额定电流 3 A

绝缘电阻 1000 MΩ

排数 2

方向 Right Angle

易燃性等级 UL 94 V-0

针脚数 30

触点额定电流 3.00 A

额定电流Max 3A/触头

工作温度Max 125 ℃

工作温度Min -65 ℃

额定电压Max 250 VAC

额定电压 250 VAC

接触电阻Max 12 mΩ

封装参数

安装方式 Through Hole

引脚间距 2.54 mm

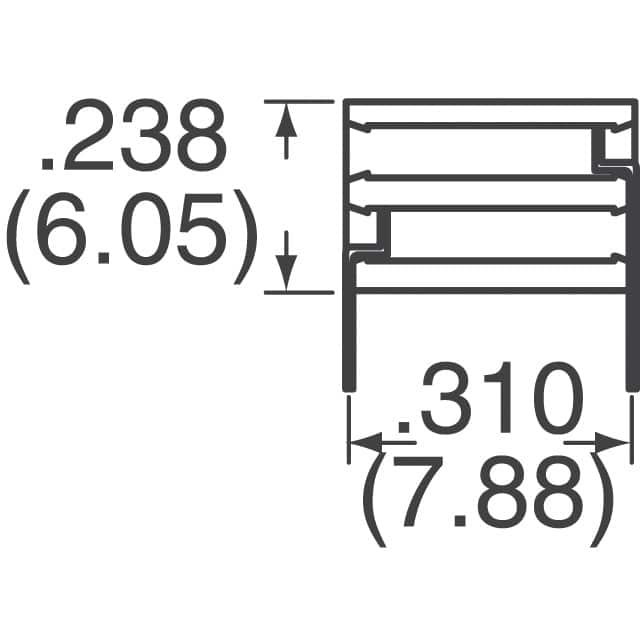

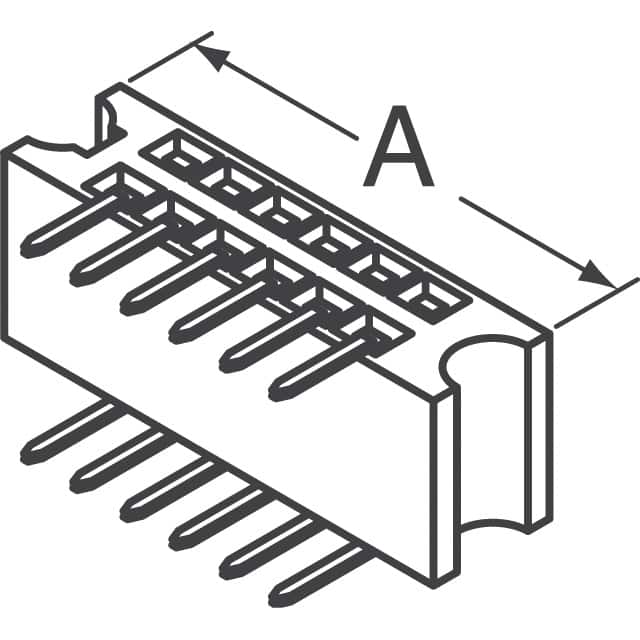

外形尺寸

长度 44.7 mm

宽度 8.13 mm

高度 6.05 mm

引脚间距 2.54 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Phosphor Bronze

工作温度 -65℃ ~ 125℃

外壳材质 Thermoplastic

其他

产品生命周期 Active

包装方式 Tube

制造应用 -, Signal

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册

在线购买5-532956-5
型号: 5-532956-5
制造商: TE Connectivity 泰科
描述:Conn Socket Strip RCP 30POS 2.54mm Solder RA Thru-Hole
替代型号5-532956-5
型号/品牌 代替类型 替代型号对比

5-532956-5

TE Connectivity 泰科

当前型号

当前型号

532956-5

泰科

完全替代

5-532956-5和532956-5的区别
