5-534267-1

集管和线壳 RECEPT 14POS .100 VERT DUAL

14 位置 插座，底部或顶部插入 通孔

得捷:
CONN RCPT 14POS 0.1 GOLD PCB

贸泽:
集管和线壳 RECEPT 14POS .100 VERT DUAL

艾睿:

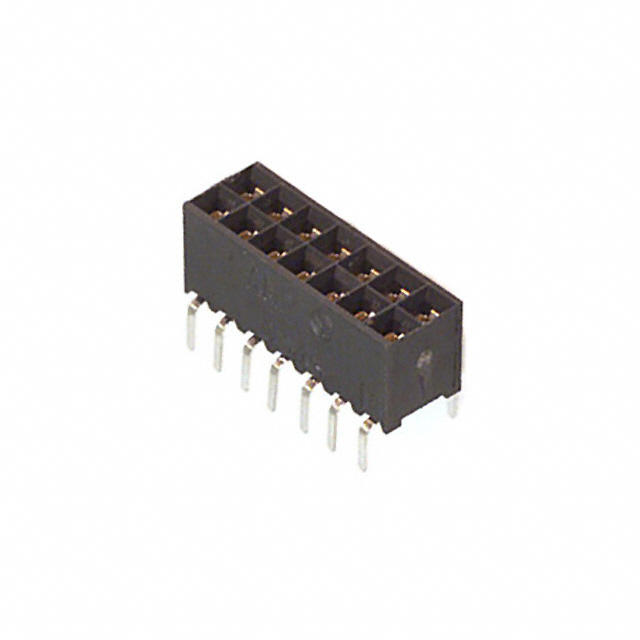

Thanks to TE Connectivity&s;s socket strip 5-534267-1 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This SKT connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a socket type gender. Its pitch is 2.54 mm. This is a 2-row connector. This device has a maximum current rating of 2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 5-534267-1 is housed in black polyester. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method. This product is 17.78 mm long, 6.73 mm tall and 5.03 mm deep.

安富利:
Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole Gang of Tubes

Verical:
Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole Tube

Powell:
.100 inch AMPMODU Receptacles

Electro Sonic:
14 MODIV VRT DR DE 100/125
