2643802702

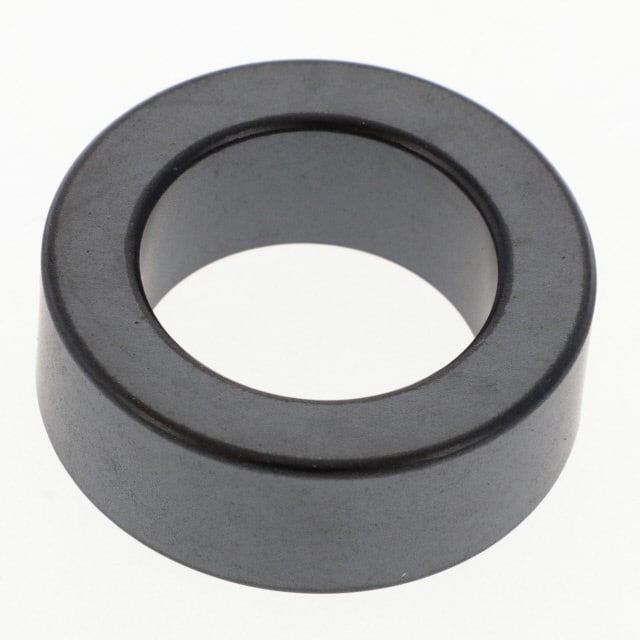

FAIR-RITE  2643802702  铁氧体磁芯, 80Ω/100MHZ, 300MHZ

The is a round cable EMI Suppression Core with 43-grade material used for inductive applications such as high frequency common-mode chokes. This NiZn is the most popular ferrite for suppression of conducted EMI from 20 to 250MHz. The actual DC H field in the application is this value of H times the actual NI ampere-turn product. For the effect of the DC bias on the impedance of the bead material. Minimum impedance values are specified for the + marked frequencies.

.

Controlled for impedances only

.

Single turn impedance tests for 43 material core is performed on 4193A vector impedance meter

.

0.25cal/g/°C Specific heat

.

3.5 to 4.5mW/cm-°C Thermal conductivity

.

Minimum impedance is typically the listed value less 20%
