5205733-1

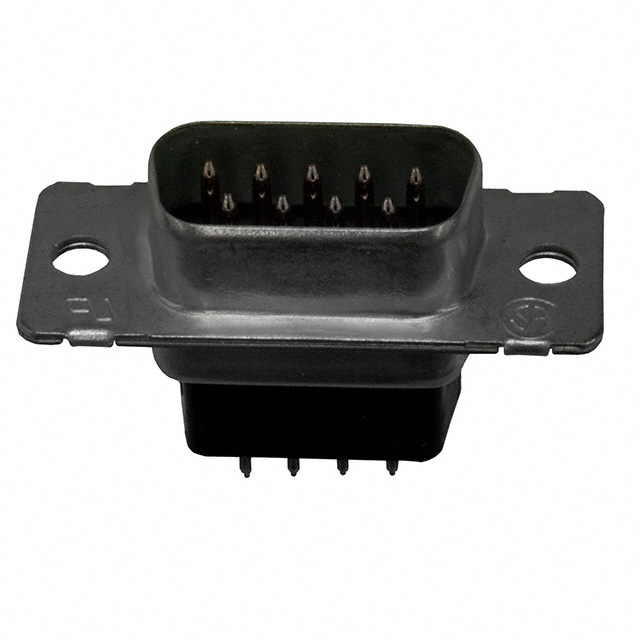

Conn D-Subminiature PIN 9POS 2.74mm Solder ST Thru-Hole 9 Terminal 1Port

9 位 D-Sub 插头，公引脚

得捷:
CONN D-SUB PLUG 9POS VERT SLDR

艾睿:
Communicating with serial connections is made easy with this 5205733-1 DVI connector from TE Connectivity. It has a straight body orientation. It has a maximum voltage rating of 250 VDC|250VAC. This 2-row connector has a single port. Its pitch is 2.74 mm. 5205733-1 is housed in nylon. Its 9 terminals use the solder termination method. This DVI connector has an operating temperature of -55 to 105 °C. This product is 31.19 mm long, 17.78 mm tall and 12.92 mm deep.

安富利:
Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port

Powell:
Standard Board Mount Connectors

Electro Sonic:
09 PLUG SP/MS STD
