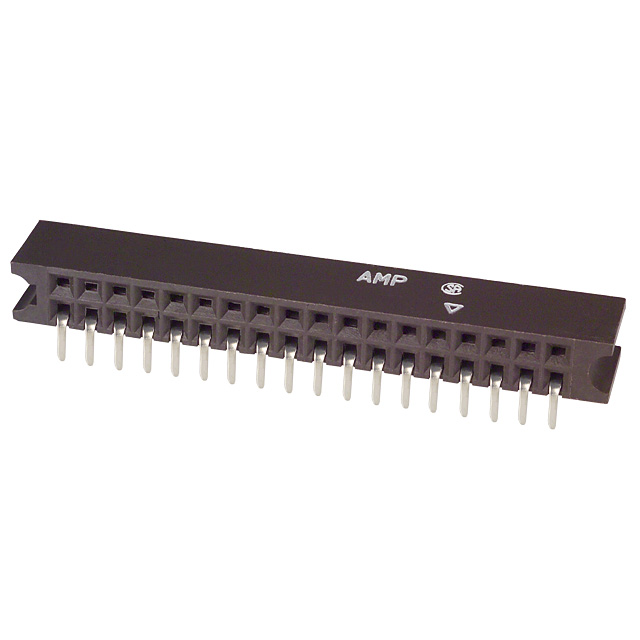

Conn Socket Strip RCP 36POS 2.54mm Solder RA Thru-Hole
36 位置 插座 0.100"(2.54mm) 通孔,直角 镀金
得捷:
CONN RCPT 36POS 0.1 GOLD PCB R/A
贸泽:
Headers & Wire Housings RECEPT 36 POS R/A
艾睿:
Mounting this socket strip 532955-6 header connector from TE Connectivity to your printed circuit board can help you support multiple physical configuration options. This SKT connector&s;s 36 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. This is a 2-row connector. It has a right angle body orientation. It has a maximum voltage rating of 250 VAC. It has a socket type gender. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 532955-6 is housed in black thermoplastic. It uses the solder termination method. This product is 52.27 mm long, 6.05 mm tall and 8.13 mm deep. This connector has an operating temperature of -65 to 105 °C.
Verical:
Conn Socket Strip SKT 36 POS 2.54mm Solder RA Thru-Hole Automotive Tube
MASTER:
RECEPTACLE ASSY, MOD II, DBL ROW, 2.54 X 2.54 [.100 X .100] CL, GUIDE PIN EARS, CLOSED ENTRY,
Powell:
.100 inch AMPMODU 2 Piece
Online Components:
36 MODII 2PC CE RCPT ASSY
Electro Sonic:
36 MODII 2PC CE RCPT ASSY
触点数 36
触点电镀 Gold, Tin
额定电流 3 A
绝缘电阻 1000 MΩ
排数 2
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 36
额定电流Max 3A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 250 VAC
额定电压 250 VAC
接触电阻Max 12 mΩ
安装方式 Through Hole
引脚间距 2.54 mm

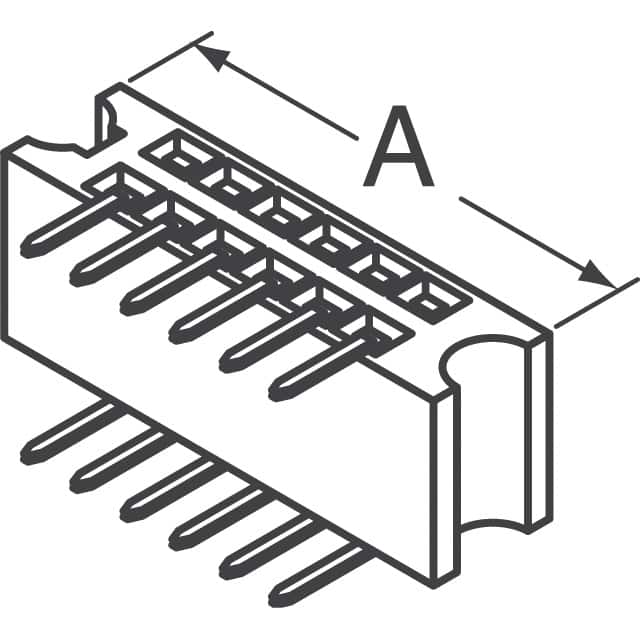

长度 52.3 mm
宽度 8.13 mm

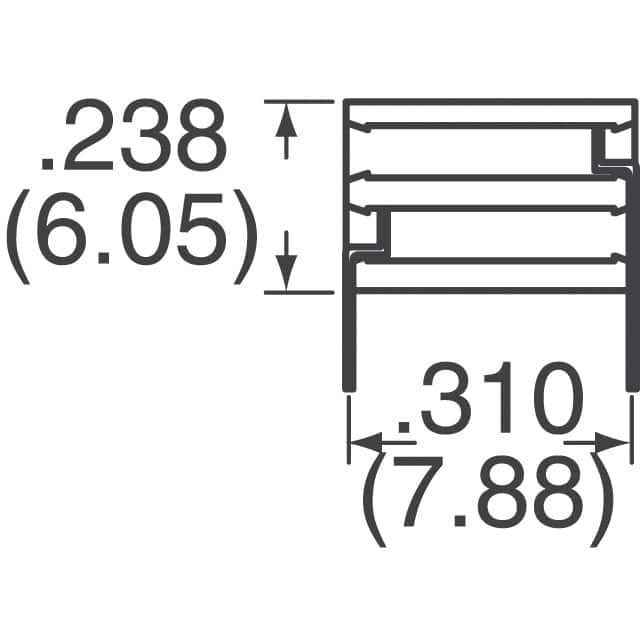

高度 6.05 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tube
制造应用 -, Signal
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
532955-6 TE Connectivity 泰科 | 当前型号 | 当前型号 |
5-532955-6 泰科 | 完全替代 | 532955-6和5-532955-6的区别 |
