AMP FROM TE CONNECTIVITY 5390377-7 输入/输出连接器, SCSI, 公, 68路

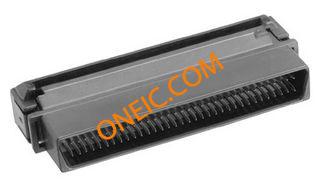

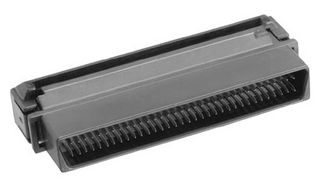

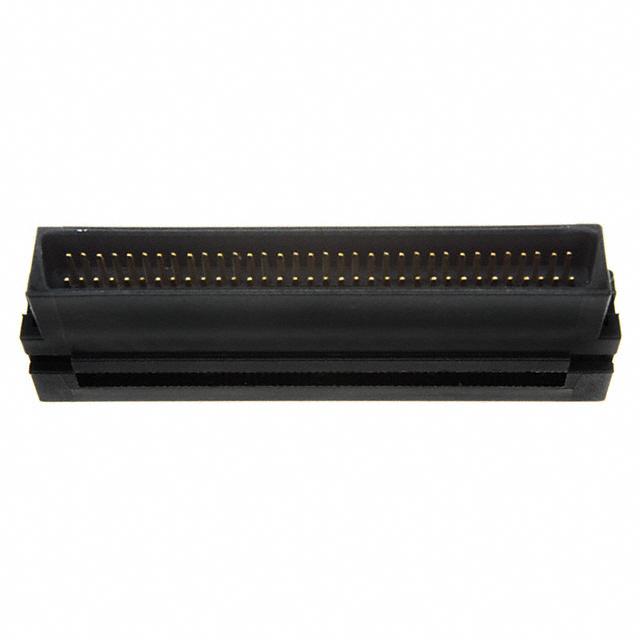

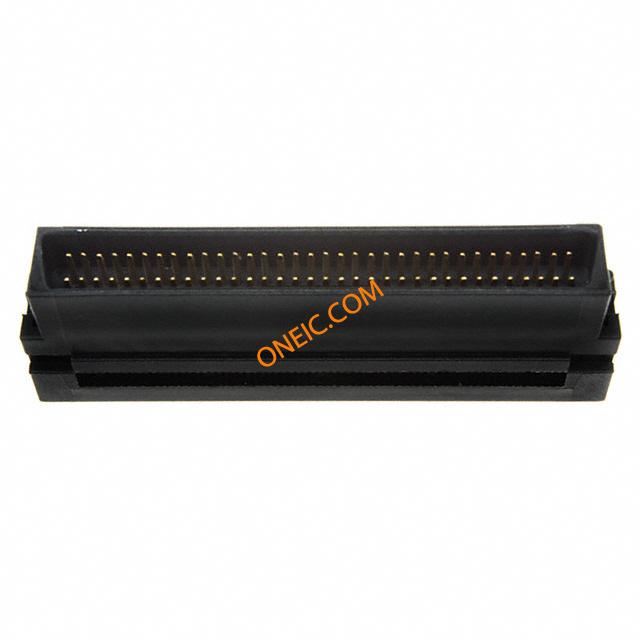

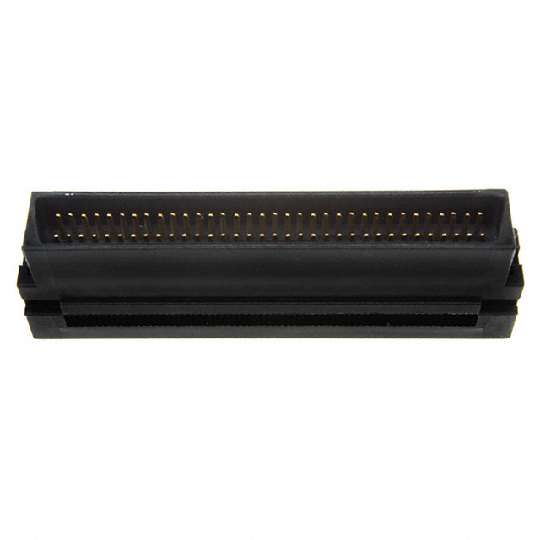

Devices such as printers and scanners that run the Small Computer System Interface standards and protocols will require this SCSI connector from 5390377-7 in order to interface with each other. This PL connector"s 68 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 30 VAC. It has a right angle body orientation. It has a plug type gender. Its pitch is 1.27 mm. This connector has a single port. This device has a maximum current rating of 1 A/contact. 5390377-7 is housed in polybutylene terephthalate. The item will be shipped in tray orientation. This SCSI connector has an operating temperature range of -55 °C to 85 °C. This product is 51.5 mm long, 17.1 mm tall and 8.3 mm deep. Its 68 terminals use the idt termination method.
触点数 68
极性 Male
触点电镀 Gold, Tin over Nickel
额定电流 1 A
排数 2
易燃性等级 UL 94 V-0
针脚数 68
屏蔽 No
额定电流Max 1A/触头
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压Max 30 VAC
额定电压 30 V
引脚间距 1.27 mm
长度 51.5 mm
宽度 8.3 mm
高度 17.1 mm
引脚间距 1.27 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 85℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Tray
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
5390377-7 TE Connectivity 泰科 | 当前型号 | 当前型号 |
10168-6000EC 3M | 功能相似 | 5390377-7和10168-6000EC的区别 |
10168-6000EL 3M | 功能相似 | 5390377-7和10168-6000EL的区别 |
60 03 068 5210 哈丁电子 | 功能相似 | 5390377-7和60 03 068 5210的区别 |
