Application 2.8 mm Box / Blade
접촉 도금 Tin
Contact 타입 Terminal

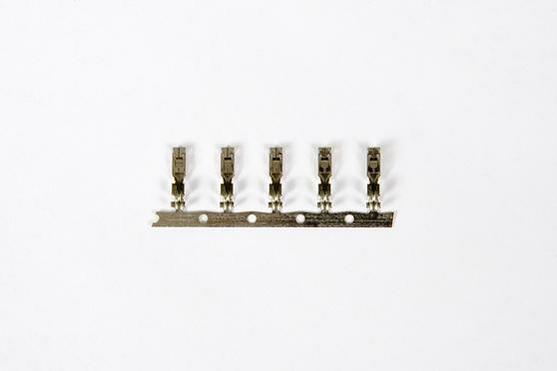

Description/기능 Female, Terminal, APEX 2.8 mm, Sealed
Family APEX
Gender Female
길이 19 mm
Material CuTeSn/CuBe
장착 Angle Vertical
장착 Method Wire
작동 온도 범위 40 C to + 125 C
Packaging Reel
제품 Terminals
시리즈 2.8
종단 스타일 Crimp
타입 Terminal
Brand Delphi Connection Systems
접촉 소재 Copper Alloy
장착 스타일 Wire
Wire Gauge Range 16 AWG - 14 AWG
Application Tooling http://www.mouser.com/catalog/specsheets/applicatortoolingapex2.8.pdf
Crimp Tool http://www.mouser.com/catalog/specsheets/assemblyrepairtoolsapex2.8.pdf
Drawing http://www.mouser.com/catalog/specsheets/c15004-custrev.n4.pdf
제조업체 Delphi Connection Systems
Spring Material Beryllium Copper
Standard Pack Qty 4000
Terminal Winding Options http://www.mouser.com/catalog/specsheets/terminalwindingoptions.pdf
상표명 APEX
RoHS Compliant
RoHS标准 RoHS Compliant
