554753-1

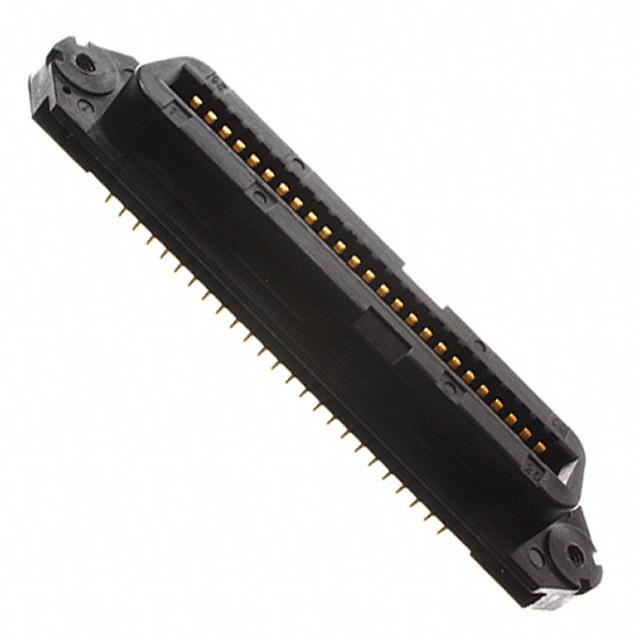

Conn IEEE 488 RCP 50POS 2.16mm Press Fit ST Thru-Hole 50 Terminal 1Port

50 位置 插座 连接器 - 通孔 压配

得捷:
CONN RCPT 50POS VERT PRESS-FIT

艾睿:
Inputs and outputs are important for a system, this ieee 488 554753-1 interface connector manufactured from TE Connectivity will exceed your needs. This RCP connector&s;s 50 contacts that are made out of copper alloy and plated with gold over nickel. This connector has a single port. Its pitch is 2.16 mm. It has a receptacle type gender. It has a straight body orientation. 554753-1 is housed in polyester. This component will be shipped in tray format. This product is 15.62 mm tall. This interface connector has a minimum operating temperature of -40 °C and a maximum of 105 °C. Its 50 terminals use the press fit termination method.

安富利:
Conn IEEE 488 RCP 50 POS 2.16mm Press Fit ST Thru-Hole 50 Terminal 1 Port

Verical:
RECEPTACLE ASSEMBLY, 50 POSN, ACTION PIN

MASTER:
RECEPTACLE ASSEMBLY,50 POSITION, SELF-RETAINED,ACTION PIN,CHAMP-LOK

Powell:
2.16 [.085] Printed Circuit Board Connectors

Electro Sonic:
RCPT ASSY, 50 POSN, ACTION PIN
