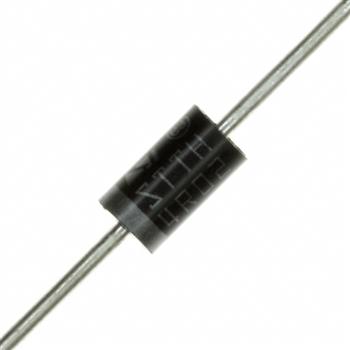

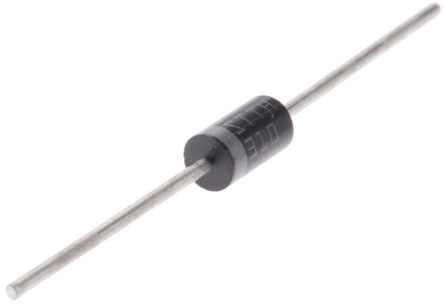

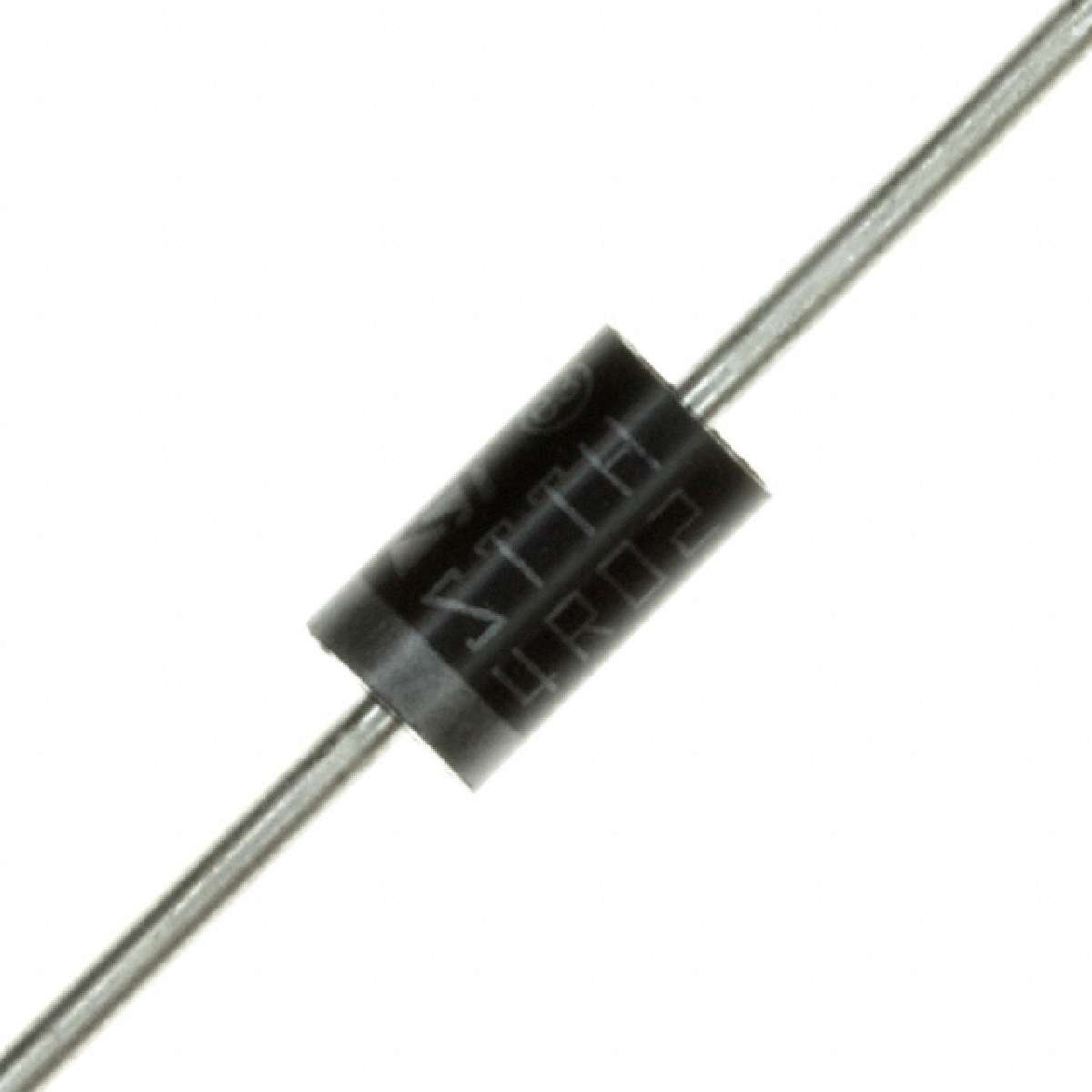

STMICROELECTRONICS STTH310. 快速/超快功率二极管, 单, 1 kV, 3 A, 1.7 V, 75 ns, 55 A
整流器,1A 至 3A,STMicroelectronics
得捷:
DIODE GEN PURP 1KV 3A DO201AD
欧时:
STMicroelectronics 二极管 STTH310 开关, Io=3A, Vrev=1000V, 75ns, 2引脚 DO-201AD封装
立创商城:
1kV 3A 1.7V@3A
艾睿:
Converting from AC to DC is simple when using a switching diode STTH310 rectifier from STMicroelectronics. Its peak non-repetitive surge current is 55 A, while its maximum continuous forward current is 3 A. It is made in a single configuration. This rectifier has a minimum operating temperature of -40 °C and a maximum of 175 °C.
安富利:
Diode Switching 1KV 3A 2-Pin DO-201AD Ammo
富昌:
STTH310 系列 3 A 1.42 V 75 ns Ultrafast 整流器 通孔 - DO-201AD
Chip1Stop:
Diode Switching 1KV 3A 2-Pin DO-201AD Ammo
Verical:
Rectifier Diode Switching 1KV 3A 75ns 2-Pin DO-201AD T/R
Newark:
# STMICROELECTRONICS STTH310 Fast / Ultrafast Power Diode, Single, 1 kV, 3 A, 1.7 V, 75 ns, 55 A
额定电压DC 1.00 kV
额定电流 3.00 A
输出电流 ≤3.00 A
正向电压 1.7V @3A
极性 Standard
热阻 75 ℃/W
反向恢复时间 75 ns
正向电流 3 A
最大正向浪涌电流(Ifsm) 55 A
正向电压Max 1.7 V
正向电流Max 3 A
工作温度Max 175 ℃
工作温度Min -40 ℃
工作结温Max 175 ℃
安装方式 Through Hole
引脚数 2

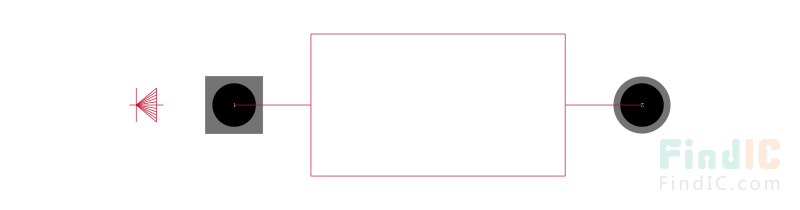

封装 DO-201AD
长度 9.5 mm
宽度 5.3 mm
高度 5.3 mm
封装 DO-201AD
工作温度 -40℃ ~ 175℃
产品生命周期 Active
包装方式 Each
制造应用 Industrial, 工业, Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STTH310 ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STTH310RL 意法半导体 | 类似代替 | STTH310和STTH310RL的区别 |
MUR4100ERLG 安森美 | 功能相似 | STTH310和MUR4100ERLG的区别 |
MUR4100EG 安森美 | 功能相似 | STTH310和MUR4100EG的区别 |
