57 20140

AMPHENOL COMMERCIAL PRODUCTS  57 20140  输入输出连接器, 57系列, 微型D, 插座, 14 触点, IDC / IDT, 面板安装

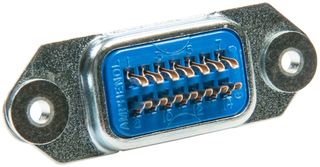

The is a 14-position mini D Ribbon Connector, 57 series, float-mounted receptacle. The micro-ribbon connector offers a fast economical and distinctively different method of achieving electrical interconnection. The heart of the connector is the ribbon contact, selectively plated gold over nickel on a copper alloy base. With contacts designed to mate easily and positively, the 57 series micro-ribbon connector delivers electrically and mechanically sound interconnections time after time.

.

Metal shells for improved EMI/RFI connector shielding

.

Zinc-plated steel outer shell, with clear chromate finish, for corrosion resistance

.

Wide/flat mating surfaces, pressed tightly together by flexing action of both contacts

.

Hooked contacts recessed in body to prevent mating damage

.

Coded contacts to assist wiring identification

.

5A Current capacity per contact

.

-55 to +105°C Operating temperature range

.

UL Approved
