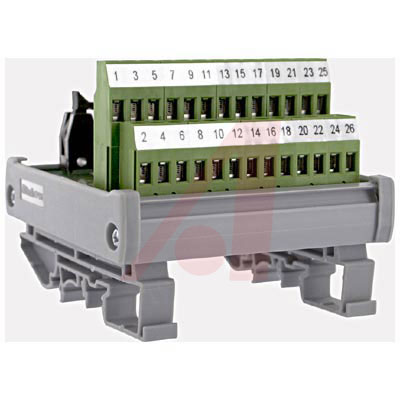

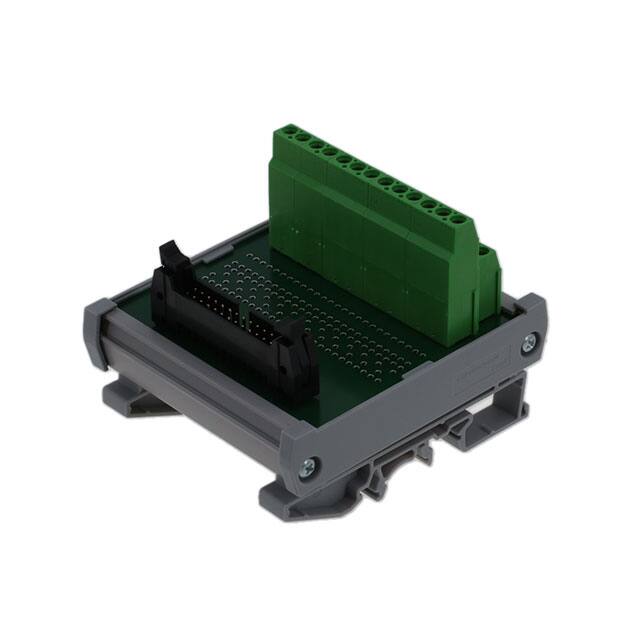

SD-F37 Interface Module, DIN Rail Mount, Female, 26Pole, 250V ac, 3A, 80mm
Ribbon Cable to Discrete Wire Modules, 250 VAC Operating Voltage
Link incompatible systems, or expand the capabilities of your logic system with interface and electronic modules and carriers. These DIN rail- or panel-mounted printed circuit board modules and carriers give design flexibility, simplify panel layouts and reduce maintenance and downtime. Modules are supplied completely assembled, with ready to wire screw-cage clamp terminal blocks in an extruded track, and can be mounted on 35 or 32 mm DIN rail, or directly to panels. Order ready-made modules, or mount your own printed circuit boards into Altech mounting tracks. If your needs go beyond our comprehensive range of standard interface and electronic modules, Altech can custom design modules that meet even the most sophisticated requirements.
Provide a flexible, cost-effective transition between high-density connectors, and high-quality screw-cage clamp terminal blocks in communications, data processing, process control and other industrial applications. Equipped with component solder pads for easy insertion of circuit building components. DIN rail-mount, panel-mount available.
Interface between multiwire flat cables with up to 64 conductors and discrete wires. No special tools are required. Supplied with short strain relief ejector latches long latches available. Terminal blocks are individually marked to correspond to the numbers on the header pins. 250 VAC, 3 A; 22-12 AWG.
FBK ribbon cable modules are supplied with short strain relief ejector latches long ejector latches are available, screw-cage clamp terminal blocks and component solder pads for easy insertion of circuit building components. All terminal blocks are indi
