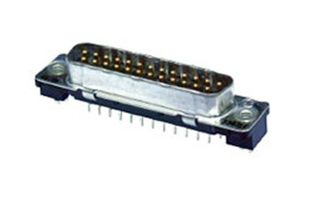

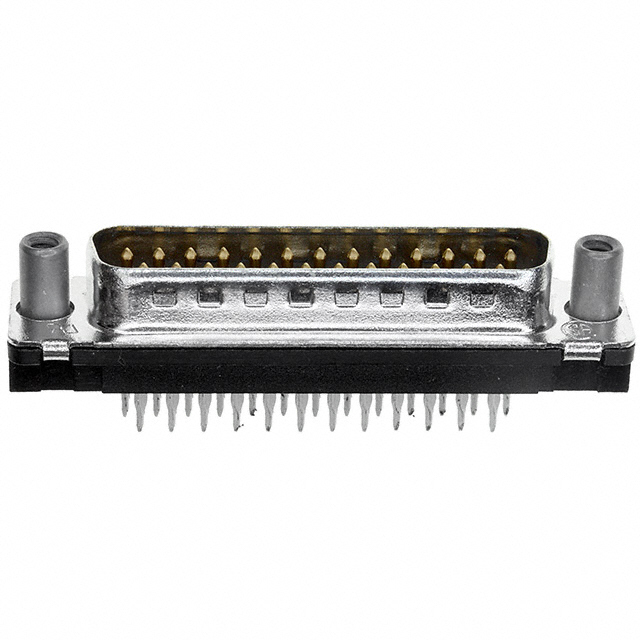

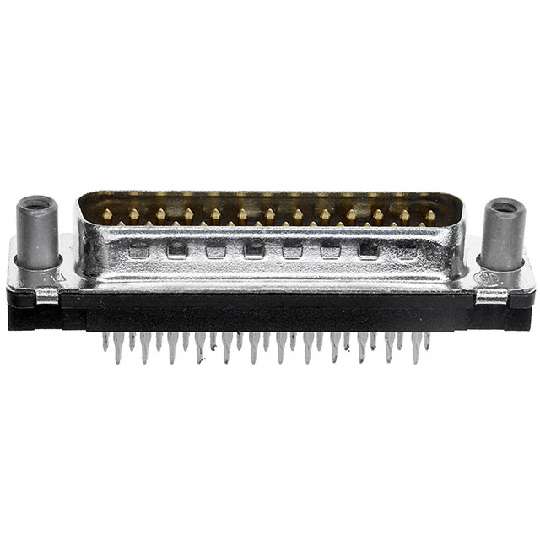

AMP FROM TE CONNECTIVITY 5748146-6 连接器, D-SUB
25 位 D-Sub 插头,公引脚
得捷:
CONN D-SUB PLUG 25P VERT PRESS
贸泽:
D-Sub Standard Connectors 25P PLUG ACT PIN/MS MED SCRLK
e络盟:
连接器, D-SUB
艾睿:
Conn D-Subminiature PIN 25 POS 2.77mm Press Fit ST Thru-Hole 25 Terminal 1 Port Frame
安富利:
Conn D-Subminiature PIN 25 POS 2.77mm Press Fit ST Thru-Hole 25 Terminal 1 Port
Chip1Stop:
Conn D-Subminiature PIN 25 POS 2.77mm Press Fit ST Thru-Hole 25 Terminal 1 Port Tray
Verical:
Conn D-Subminiature PIN 25 POS 2.77mm Press Fit ST Thru-Hole 25 Terminal 1 Port Tray
Newark:
# AMP - TE CONNECTIVITY 5748146-6 Standard D Sub Connector, 25 Contacts, Plug, DB, AMPLIMITE HD-20 Series, Metal Body, Solder
MASTER:
PLUG ASSEMBLY, SIZE 3, 25 POSITION, ACTION PIN, W/FRONT METAL SHELL, AMPLIMITE
Powell:
Standard Board Mount Connectors
Electro Sonic:
25 PLUG ACT PIN/MS MED SCRLK
触点数 25
极性 Male
触点电镀 Gold Flash
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 25
安装方式 Through Hole
引脚间距 2.77 mm
长度 53.47 mm
宽度 12.55 mm
高度 11.83 mm
引脚间距 2.77 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Tray
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
5748146-6 TE Connectivity 泰科 | 当前型号 | 当前型号 |
L17TF2510111 安费诺 | 类似代替 | 5748146-6和L17TF2510111的区别 |
748146-6 泰科 | 功能相似 | 5748146-6和748146-6的区别 |
