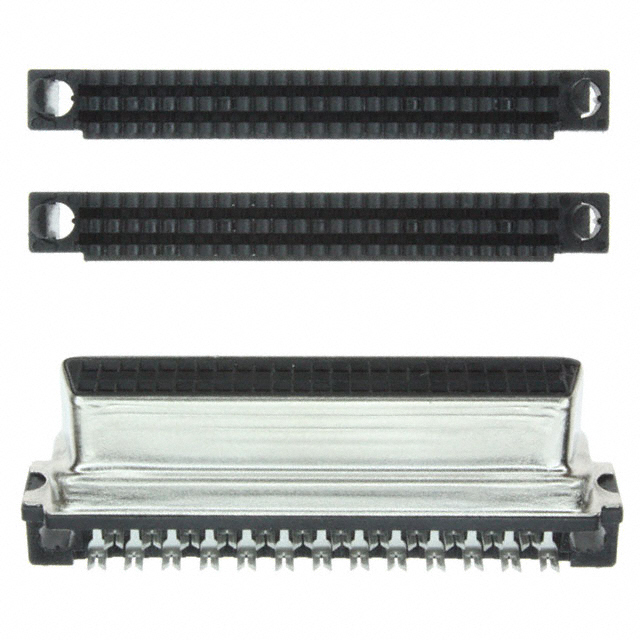

5749210-5

Conn SCSI RCP 50POS 1.27mm IDT RA Cable Mount 50 Terminal 1Port Package

50 位 D 型 插座，母型插口

得捷:
CONN D-TYPE RCPT 50POS IDC

贸泽:
I/O Connectors SHIELDED RECPT 50P w/assembled cvrs

艾睿:
Devices such as printers and scanners that run the Small Computer System Interface standards and protocols will require this 5749210-5 SCSI connector from 5749210-5 in order to interface with each other. This RCP connector&s;s 50 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 1.27 mm. It has a right angle body orientation. It has a maximum voltage rating of 30 VAC. It has a receptacle type gender. This connector has a single port. This device has a maximum current rating of 1 A/contact. 5749210-5 is housed in thermoplastic. Its 50 terminals use the idt termination method. This SCSI connector has an operating temperature range of -55 °C to 105 °C. This product is 15.04 mm tall.

Chip1Stop:
Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Package

Verical:
Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Package

Newark:
D Sub Connector, 50 Contacts, Receptacle, DD, AMPLIMITE 0.050 Series, IDC / IDT

MASTER:
RECEPTACLE ASSEMBLY, CABLE CONNECTOR, .050 SERIES, AMPLIMITE

Powell:
.050 Series Cable Connectors SCSI

Online Components:
50 50SR CABLE RCPT ASSY

Electro Sonic:
50 50SR CABLE RCPT ASSY
