5787082-3

Conn SCSI RCP 28POS 2.54mm Solder RA Thru-Hole 28 Terminal 1Port Tube

28 位 D 型 插座，母型插口

得捷:
CONN D-TYPE RCPT 28POS R/A SLDR

艾睿:

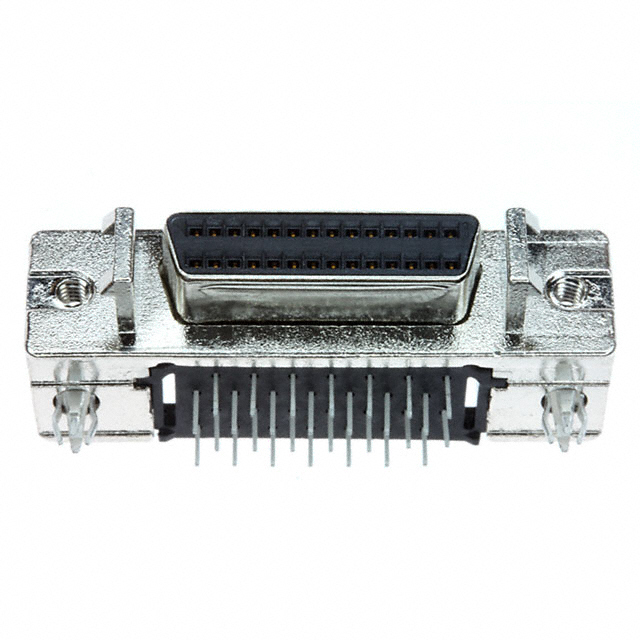

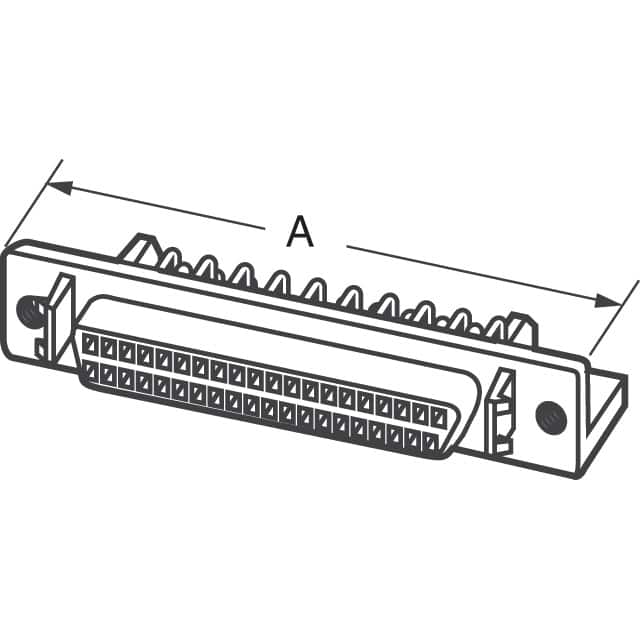

The 5787082-3 DVI connector from TE Connectivity allows effective communication between your serial connections. This 2-row connector has a single port. This socket type connector&s;s 28 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a right angle body orientation. It has a maximum voltage rating of 30 VAC. This device has a maximum current rating of 1 A/contact. 5787082-3 is housed in thermoplastic. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 38.48 mm long, 10.31 mm tall and 16.87 mm deep. This DVI connector has an operating temperature of -55 to 105 °C. Its 28 terminals use the solder termination method.

安富利:
Conn D-Subminiature SKT 28 POS 2.54mm Solder RA Thru-Hole 28 Terminal 1 Port Tube

Chip1Stop:
Conn D-Subminiature SKT 28 POS 2.54mm Solder RA Thru-Hole 28 Terminal 1 Port Tube

Powell:
.050 Series Board Mount Connectors

Electro Sonic:
28 50SR R/A RCPT ASSY,RDSN L/F
