6-102692-6

Conn Shrouded Header HDR 20POS 2.54mm Solder ST Thru-Hole

20 MODII 2PC HDR DR SHRD, ROHS

得捷:
CONN HEADER VERT 20POS 2.54MM

贸泽:
Board to Board & Mezzanine Connectors 20 MODII 2PC HDR DR SHRD

艾睿:

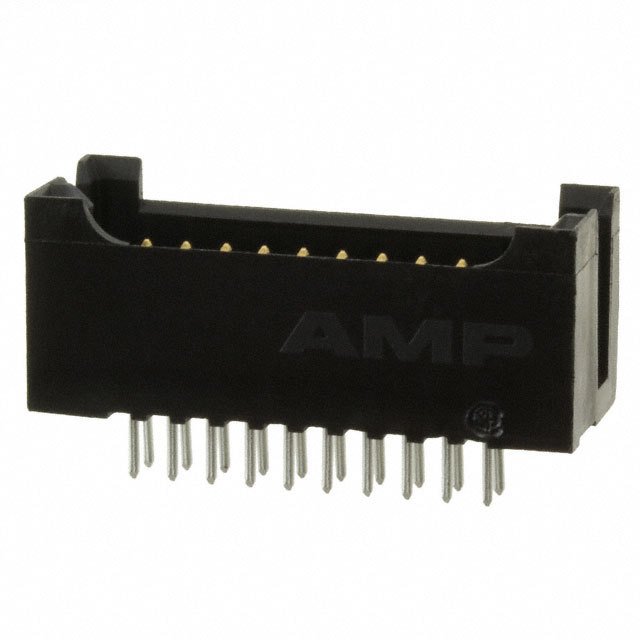

Mounting this shrouded 6-102692-6 header connector from TE Connectivity to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a straight body orientation. It has a maximum voltage rating of 250 VAC. It has a header type gender. This is a 2-row connector. This device has a maximum current rating of 3 A/contact. It uses the solder termination method. 6-102692-6 is housed in black thermoplastic. This product is 35.02 mm long, 13.97 mm tall and 13.08 mm deep. This connector has an operating temperature of -65 to 105 °C.

Chip1Stop:
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# AMP - TE CONNECTIVITY  6-102692-6  20 MODII 2PC HDR DR SHRD, ROHS New

MASTER:
HEADER ASSEMBLY, MOD II, .100C.100CL, .025 SQ POSTS

Powell:
.100 inch AMPMODU 2 Piece

Electro Sonic:
20 MODII 2PC HDR DR SHRD, ROHS
